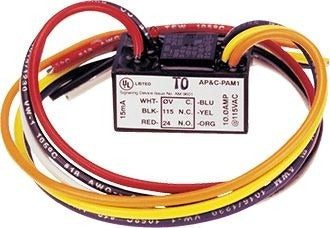

Potter Electric Signal ssu-pam-1 Relay 10A 24V 115VAC

Product Description

The POTTER ELECTRIC SIGNAL ssu-pam-1 is an encapsulated multi-voltage relay designed for fire alarm, security, and building automation control circuits. It accepts three input voltages — 24 VAC, 24 VDC, or 115 VAC — making it adaptable across a wide range of panel and control board configurations without rewiring or additional interface modules. The relay provides 10.0 amp Form C dry contacts, suitable for switching auxiliary loads, notification appliances, or interface relays. A built-in red LED illuminates when the coil is energized, giving installers and technicians a clear visual confirmation of relay status during commissioning and troubleshooting.

This relay is used in commercial and residential fire alarm systems, access control panels, and building automation applications where a multi-voltage switching interface is required. Its encapsulated construction protects the coil and contact assembly from moisture and contaminants, making it appropriate for both clean and light-industrial environments. Electricians, fire alarm technicians, and low-voltage system integrators typically install this relay as part of a larger panel or control enclosure assembly.

Key Features

• Accepts 24 VAC, 24 VDC, or 115 VAC input — single part covers multiple panel voltages
• 10.0 amp Form C contacts for versatile switching configurations
• Red LED coil-energized indicator for quick visual status confirmation
• Encapsulated construction protects against moisture and debris
• Compact design suitable for installation inside control enclosures and panels

Compatibility

Designed as an OEM-style replacement or auxiliary relay for multi-voltage fire alarm, security, and building automation control panels requiring 10-amp Form C contact switching.

Installation Notes

Installation should be performed by a licensed electrician or certified fire alarm technician in accordance with NFPA 72 and applicable local electrical codes. De-energize the control panel and verify zero voltage at all terminals before connecting or disconnecting the relay. Confirm input voltage at the panel matches one of the three accepted coil voltages before applying power. Do not exceed the 10-amp contact rating when sizing connected loads.

Technical Specifications

• Input Voltages: 24 VAC, 24 VDC, 115 VAC
• Contact Rating: 10.0 amps
• Contact Form: Form C
• Coil Status Indicator: Red LED
• Construction: Encapsulated

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: ssu-pam-1
