Potter Electric Signal ra-6500fr Lcd Remote Annunciator

Product Description

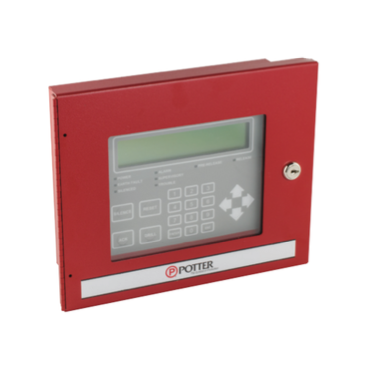

The POTTER ELECTRIC SIGNAL ra-6500fr is a flush mount LCD remote annunciator designed for use with fire alarm control panels. It communicates with the main panel over an RS-485 connection, providing real-time indication of Alarms, Supervisory, Trouble, and other system status conditions. The unit features a 4x40 LCD display and dedicated LEDs for Power, Alarm, Supervisory, Trouble, Silence, Pre-Release, and Release states. The enclosure is sheet metal construction and includes a Potter lock to secure the keypad against unauthorized access. Licensed fire alarm technicians and system integrators are the primary installers.

The ra-6500fr is suited for commercial and light industrial fire alarm installations where a remote annunciator is required at a secondary location such as a lobby, security desk, or building entrance. It supports flush mounting or surface mounting to accommodate different wall and enclosure conditions. Compatible panel families listed in the input include the PFC series, Potter Plus series, and IPA series fire control panels.

Key Features

• 4x40 LCD display for clear system status readout at the annunciator location
• RS-485 communication interface to the main fire control panel
• Dedicated LEDs for Power, Alarm, Supervisory, Trouble, Silence, Pre-Release, and Release conditions
• Flush mount or surface mount installation flexibility
• Sheet metal enclosure with Potter lock for keypad security

Compatibility

Compatible with the PFC series, Potter Plus series, and IPA series fire alarm control panels from Potter Electric Signal Company, LLC.

Installation Notes

Installation should be performed by a licensed fire alarm technician in accordance with NFPA 72 and applicable local codes. Disconnect power to the fire alarm control panel before wiring the RS-485 communication leads to avoid damage to the panel or annunciator. Follow the panel manufacturer wiring documentation for correct terminal assignments and termination resistor placement on the RS-485 bus. Do not restore power until all connections have been verified and the enclosure is properly secured.

Technical Specifications

• Display: 4x40 LCD
• Communication Interface: RS-485
• Mounting Type: Flush mount or surface mount
• Enclosure Material: Sheet metal
• Weight: 2 pounds
• Condition: New

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: ra-6500fr
