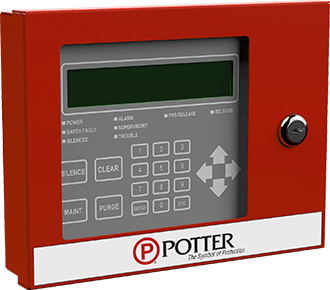

Potter Electric Signal ra-6500 Lcd Remote Annunciator

Product Description

The POTTER ELECTRIC SIGNAL ra-6500 is an LCD remote annunciator designed for use with addressable fire alarm control systems. It communicates with the main control panel over an RS-485 connection, delivering real-time indication of Alarm, Supervisory, Trouble, Silenced, and Power status conditions. The unit features a 4x40 format, 160-character LCD display paired with dedicated status LEDs for each system condition. The enclosure is constructed of sheet metal and secured with a Potter lock to restrict unauthorized keypad access. Licensed fire alarm technicians install and commission this device as part of a larger fire detection and notification system.

The ra-6500 is intended for installation in commercial and light industrial fire alarm applications where a remote annunciation point is required away from the primary control panel. It provides common control and status functions at a secondary location, allowing first responders and building personnel to monitor system state without returning to the main panel. The unit mounts on a standard single-gang electrical box or a four-square electrical box, making it adaptable to a variety of building wiring configurations.

Key Features

• 4x40 LCD display with 160-character capacity for detailed system status readout
• RS-485 communication interface connects to the main fire control panel
• Dedicated status LEDs for Power, Alarm, Supervisory, Trouble, and Silenced conditions
• Sheet metal enclosure with Potter lock for keypad security
• Compatible with single-gang or four-square electrical box mounting

Compatibility

Designed for use with the PFC-6000 Series addressable fire alarm control panels by POTTER ELECTRIC SIGNAL.

Installation Notes

Installation must be performed by a licensed fire alarm technician in accordance with NFPA 72 and all applicable local codes. Disconnect and lock out power to the fire alarm control panel before wiring the RS-485 communication connection. Verify polarity and termination requirements on the RS-485 bus per the control panel documentation before restoring power. Do not mount the annunciator in locations subject to excessive moisture, vibration, or ambient conditions outside the panel manufacturer specifications.

Technical Specifications

• Display Type: 4x40 LCD, 160 characters
• Communication Interface: RS-485
• Status Indicators: LEDs for Power, Alarm, Supervisory, Trouble, Silenced
• Enclosure Material: Sheet metal
• Mounting: Single-gang or four-square electrical box
• Security: Potter lock keypad enclosure

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: ra-6500
