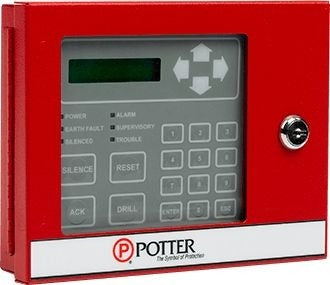

Potter Electric Signal ra-6075r Lcd Remote Annunciator

Product Description

The POTTER ELECTRIC SIGNAL ra-6075r is a 32-character LCD remote annunciator designed for use with addressable fire alarm control panels. The unit features a 16x2 LCD display and communicates with the main fire panel over an RS-485 connection, delivering real-time system status including Alarm, Supervisory, Trouble, Silenced, and Power conditions via dedicated LEDs. The enclosure is sheet metal construction and is secured with a Potter lock to restrict unauthorized access to the keypad. This annunciator is installed by licensed fire alarm technicians during system commissioning or as an expansion to existing addressable fire alarm systems.

The ra-6075r is intended for use with the PFC-6075 and PFC-6030 addressable fire alarm control panels. It provides remote annunciation capability where a secondary status display point is required, such as building lobbies, security desks, or remote monitoring locations. The unit mounts directly to a standard single-gang electrical box or a four-square electrical box, making it adaptable to a range of installation environments in both residential and commercial applications.

Key Features

• 32-character, 16x2 LCD display for clear system status readout
• RS-485 communication to the main addressable fire control panel
• Dedicated LEDs for Power, Alarm, Supervisory, Trouble, and Silenced conditions
• Sheet metal enclosure with Potter lock for keypad security
• Mounts on single-gang or four-square electrical boxes

Compatibility

Designed for use with the Potter PFC-6075 and PFC-6030 addressable fire alarm control panels.

Installation Notes

Installation must be performed by a licensed fire alarm technician in accordance with NFPA 72 and applicable local codes. De-energize the fire alarm control panel before making any wiring connections to the annunciator. Verify RS-485 polarity and termination requirements at the panel before powering the system. Do not mount in locations subject to excessive moisture, vibration, or ambient conditions outside the panel manufacturer's rated environmental range.

Technical Specifications

• Display: 32-character, 16x2 LCD
• Communication Interface: RS-485
• Status Indicators: Power, Alarm, Supervisory, Trouble, Silenced LEDs
• Enclosure Material: Sheet Metal
• Mounting: Single-gang or four-square electrical box

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: ra-6075r
