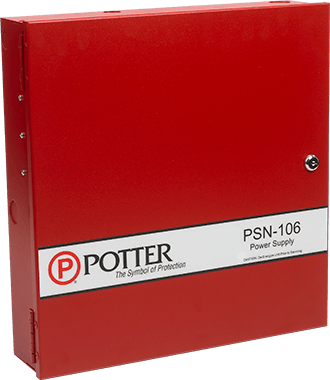

Potter Electric Signal psn-106 Notification Power Supply

Product Description

The POTTER ELECTRIC SIGNAL psn-106 is a conventional notification power supply designed to deliver reliable, continuous power to fire alarm and life safety notification appliances. Rated at 10 amps total continuous output, the unit distributes power across 6 independent outputs, each rated at 3 amps. Unlike some multi-output supplies that require derating under sustained load, the psn-106 operates at full rated capacity on all outputs simultaneously without reduction. Licensed fire alarm technicians and electrical contractors install this unit as part of conventional fire alarm notification circuits in commercial and light industrial applications.

The psn-106 is suited for conventional fire alarm systems where multiple notification appliance circuits must be powered from a single, centralized supply. Its 6-output configuration supports segmented circuit layouts, allowing technicians to isolate notification zones or device types across separate outputs. This makes it practical for multi-zone buildings, phased evacuation systems, or installations where circuit separation is required by the authority having jurisdiction.

Key Features

• 10 amps continuous total output with no derating required under sustained load
• 6 independent outputs, each rated at 3 amps continuous
• Conventional power supply architecture compatible with standard notification appliance circuits
• Full-rated operation on all outputs simultaneously without capacity reduction
• Designed for centralized notification power distribution in commercial life safety systems

Compatibility

Designed as an OEM-style notification power supply for use with conventional fire alarm notification appliance circuits. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed fire alarm technician or qualified electrician in accordance with NFPA 72 and applicable local codes. De-energize the system and follow lockout/tagout procedures before wiring any output or input connections. Verify that the total connected load per output does not exceed the 3-amp per-circuit rating. Consult the authority having jurisdiction for any requirements related to placement, supervision, or circuit labeling.

Technical Specifications

• Total Output Current: 10 amps continuous
• Number of Outputs: 6
• Output Rating per Circuit: 3 amps continuous
• Power Supply Type: Conventional

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: psn-106
