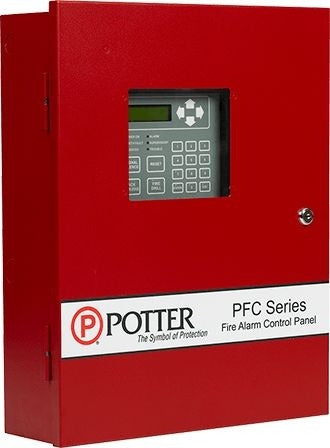

Potter Electric Signal pfc-6006-r Sprinkler Panel 6 Zone

Product Description

The POTTER ELECTRIC SIGNAL pfc-6006-r is a listed small conventional fire alarm control panel designed to monitor fire sprinkler systems and other small fire protection systems. The first input zone is selectable as Class A or Class B water flow input. The remaining five zones are configurable via menu, including support for two-wire smoke detection. The panel includes a 1.0 amp power supply that charges onboard batteries, delivers 0.5 amps to a notification appliance circuit, and provides 0.5 amps of auxiliary power programmable as constant or resettable output. A built-in dual telephone line digital alarm communicator transmitter (DACT) enables remote monitoring station communication.

This panel is suited for residential and light commercial applications where a small conventional fire sprinkler monitoring system is required. Installers will find the printed circuit assembly mounts for quick removal, simplifying cabinet installation. The metal enclosure with key lock and Lexan window allows visual system status checks without opening the cabinet. The panel supports up to four RA-6075 remote annunciators connected via the P-Link bus, each providing full system functionality in their own keyed metal enclosure.

Key Features

• Six monitoring zones: Zone 1 selectable as Class A or Class B water flow; Zones 2-6 configurable from a menu including two-wire smoke detection
• 1.0 amp power supply with 0.5 amp notification appliance circuit output and 0.5 amp auxiliary power output
• Auxiliary power programmable as constant or resettable
• Built-in dual telephone line DACT for remote monitoring station communication with line in and line out pass-through
• 32-character LCD display with system status LEDs and history buffer for past events
• Supports up to four RA-6075 remote annunciators on the P-Link bus
• Metal cabinet with key lock, Lexan window, and capacity for up to two 12 VDC 18 AH batteries

Compatibility

Compatible with up to four RA-6075 remote annunciators via the P-Link bus. Designed as a listed conventional fire alarm control panel for small fire sprinkler and fire protection system monitoring applications.

Installation Notes

Installation must be performed by a licensed fire alarm technician in accordance with NFPA 72 and all applicable local codes. Disconnect all power sources and disable the telephone lines before servicing the panel or handling the printed circuit assembly. The circuit board is designed for quick removal from the cabinet to allow the enclosure to be pre-mounted before wiring. Panel configuration updates can be transmitted remotely through the connected telephone lines once the system is commissioned.

Technical Specifications

• Number of Zones: 6
• Zone 1 Input: Selectable Class A or Class B water flow
• Zones 2-6: Menu-selectable including two-wire smoke detection
• Power Supply Output: 1.0 amp
• Notification Appliance Circuit Output: 0.5 amps
• Auxiliary Power Output: 0.5 amps (constant or resettable)
• Battery Capacity: Up to two 12 VDC 18 AH batteries
• Display: 32-character LCD with system status LEDs and history buffer
• Communicator: Dual telephone line DACT (built-in)
• Remote Annunciator Support: Up to 4 RA-6075 units via P-Link bus
• Enclosure: Metal cabinet with key lock and Lexan window
• Color: Red

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: pfc-6006-r
