Potter Electric Signal pad100-drts Duct Remote Test Switch

Product Description

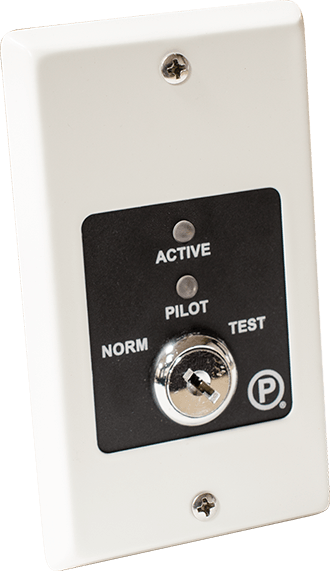

The POTTER ELECTRIC SIGNAL pad100-drts is a supervised remote test switch designed for use with the PAD100-DUCTR duct detector. It operates without requiring an SLC loop address, simplifying installation in addressable fire alarm systems. The module includes Active and Pilot LEDs that provide continuous status indication of the connected PAD100-DUCTR detector. A keyed switch enables controlled remote testing of the duct detector from a convenient location, supporting routine verification without direct access to the detector housing. Licensed fire alarm technicians and low-voltage contractors typically handle installation and commissioning of this type of device.

The pad100-drts is suited for commercial and light industrial HVAC duct smoke detection applications where remote test capability is required. It pairs specifically with the PAD100-DUCTR duct detector, allowing service personnel to initiate detector tests from a remote location rather than at the duct unit itself. This is particularly useful in installations where the duct detector is mounted in a hard-to-reach plenum or air handler enclosure. The device integrates into supervised fire alarm circuits, maintaining circuit integrity monitoring at all times.

Key Features

• Supervised remote test switch for the PAD100-DUCTR duct detector
• No SLC loop address required, reducing programming overhead
• Active and Pilot LEDs provide real-time status indication of the connected detector
• Keyed switch prevents unauthorized or accidental test activation
• Maintains supervised circuit monitoring for continuous fault detection

Compatibility

Designed for use with the PAD100-DUCTR duct detector. Refer to Potter Electric Signal documentation to confirm compatibility with specific system configurations before installation.

Installation Notes

Installation should be performed by a licensed fire alarm technician or low-voltage contractor in accordance with NFPA 72 and applicable local codes. Power down and disable the fire alarm control panel zone before wiring or servicing this device to avoid unintended alarms. Mount the remote test switch in an accessible location as defined by the authority having jurisdiction. Do not substitute this module for other remote accessories not specified in the PAD100-DUCTR installation documentation.

Technical Specifications

• Product Type: Remote Test Switch
• Product Model: PAD100-DRTS

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: pad100-drts
