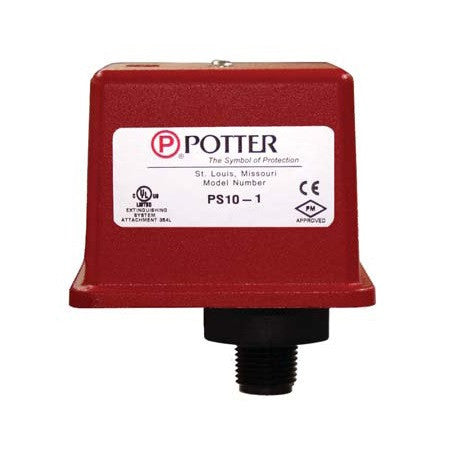

Potter Electric Signal 1340103 PS10-1 Pressure Switch With One Set SPDT Contacts

Product Description

The POTTER ELECTRIC SIGNAL 1340103 PS10-1 pressure actuated switch detects waterflow in automatic fire sprinkler systems, including wet pipe systems with alarm check valves, dry pipe, preaction, or deluge valves. It can also provide a low pressure supervisory signal, adjustable between 4 and 15 psi. NEMA 4/IP55 rated for indoor or outdoor use.

• Designed for the detection of a waterflow condition in automatic fire sprinkler systems
• Suitable to provide a low pressure supervisory signal
• Adjustable between 4 and 15 psi (0,27 and 1,03 BAR)

Product Highlights

The Potter PS10-1 pressure switch is designed for waterflow detection in fire sprinkler systems and provides low-pressure supervision.

Product Information

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: 1340103

Technical Specifications

• Model Number: PS10-1
• Item Number: 1340103
• Conduit Entrance: Two knockouts provided for 1/2" conduit. Individual switch compartments and ground screws suitable for dissimilar voltages.
• Enclosure: Cover - Die-cast with textured red powdercoat finish, single cover screw and rain lip. Base - Die-cast
• Pressure Connection: Nylon 1/2" NPT Male
• Factory Adjustment: 4 - 8 PSI (0,27 - 0,55 BAR)
• Differential: 2 PSI (0,13 BAR) typical
• Maximum System Pressure: 300 PSI (20,68 BAR)
• Switch Contacts: SPDT (Form C) 10.1 Amps at 125/250VAC, 2.0 Amps at 30VDC One SPDT in PS10-1, Two SPDT in PS10-2
• Environmental Specifications: NEMA 4/IP55 Rated Enclosure - indoor or outdoor when used with NEMA 4 conduit fittings. Temperature range: -40 F to 140 F (-40 C to 60 C)
• Service Use: One or two family dwelling NFPA-13D Residential Occupancy up to four stories NFPA-13R National Fire Alarm Code NFPA-72
• Manufacturer: Potter Electric Signal Company, LLC
• Brand: Potter
• Contact Configuration: SPDT
• Location: Indoor, Outdoor
• Material Qualities: Corrosion Resistant, Fire Resistant, High Impact Resistance, UV Resistant, Weather Resistant
• Series: PS10 Series: Pressure Type Waterflow Switch
• Production Status: Active
