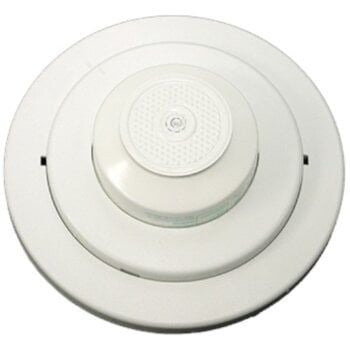

Potter Electric Signal 1000141 Heat Detector 200F Ror

Product Description

The POTTER ELECTRIC SIGNAL 1000141 is a combination fixed-temperature and rate-of-rise heat detector designed for fire detection applications in commercial, residential, and institutional buildings. It triggers at a fixed threshold of 200 degrees F and also responds to rapid temperature increases that fall below the fixed setpoint, giving the system two independent detection mechanisms in a single device. The white housing mounts to a standard electrical box and blends with typical ceiling finishes. Licensed fire alarm technicians and electricians install this unit as part of a supervised fire alarm system where early warning is a life safety requirement.

This detector is suited for areas where smoke detectors are not appropriate due to dust, humidity, or normal process heat, such as kitchens, attics, garages, and mechanical rooms. It is applicable in both new construction and retrofit projects where a hardwired heat detection point is required on a conventional or addressable fire alarm control panel. The clean white finish is appropriate for finished interior ceilings in occupied spaces.

Key Features

• Fixed-temperature trip point at 200 degrees F for reliable threshold detection
• Rate-of-rise technology activates on rapid heat increase below the fixed setpoint
• Mounts to standard electrical boxes for straightforward installation
• White housing suited for finished ceiling surfaces in occupied spaces
• Dual-detection mechanism reduces nuisance alarms while maintaining response speed

Compatibility

Designed as an OEM-style replacement or new-installation heat detector for use with compatible fire alarm control panels in conventional or supervised detection circuits.

Installation Notes

Installation must be performed by a licensed fire alarm technician or qualified electrician in accordance with NFPA 72 and applicable local fire codes. De-energize and lock out the fire alarm control panel circuit before wiring the detector to prevent false alarms or panel damage during installation. Verify that the detector base and wiring are compatible with the panel being used before completing the connection. Follow the manufacturer wiring diagram and conduct a full system test after installation to confirm proper operation.

Technical Specifications

• Fixed Temperature Rating: 200 degrees F
• Detection Method: Fixed temperature and rate of rise
• Housing Color: White
• Mounting: Standard electrical box

Standard Information

• Brand: POTTER ELECTRIC SIGNAL
• Manufacturer Part Number: 1000141
