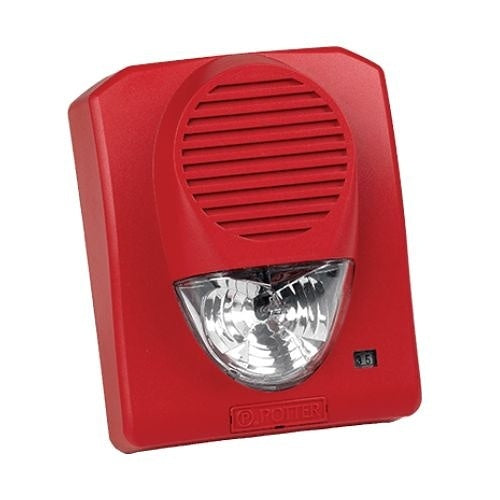

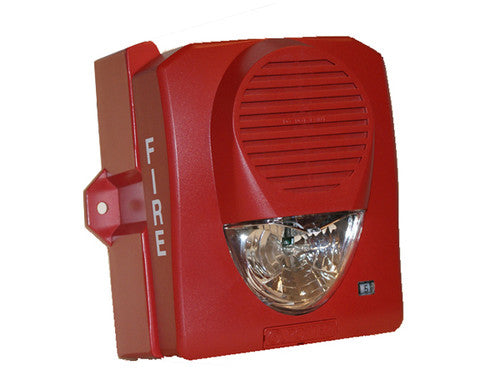

Potter Electric 4710030 sh-120 series horn strobe 120v ac with striking body replacement sh-120r

Product Description

The POTTER ELECTRIC 4710030 SH-120 Series Horn Strobe provides both audible and visual signals for fire and burglar alarm systems, and life safety notifications. Operable with a 120 VAC system between 96 VAC and 132 VAC, it interfaces with pull stations, flow switches, and sprinkler systems for various applications.

• UL Listed
• 120V AC operation
• Suitable for outdoor and indoor use

Product Highlights

This weatherproof horn strobe features six sound output settings, a pre-wire back plate, and universal back plate mounting. A BBX-5 weatherproof backbox is included.

Product Information

Standard Information

• Brand: POTTER ELECTRIC
• Manufacturer Part Number: 4710030
• Country of Origin: China

Technical Specifications

• ADI Part Number: PL-SH120R
• Brand Name: Potter Electric Signal, LLC
• Manufacturer: Potter Electric Signal, LLC
• Manufacturer Part Number: 4710030
• Product Line: Select-A-Strobe/Horn
• Product Model: SH-120R
• Product Series: SH-120
• Product Type: Horn Strobe
• Alarm Type: Audible, Visual
• Application/Usage: Commercial, Control Panel, Fire Alarm, Indoor, Industrial, Outdoor, Residential, Signaling System
• Connectivity Technology: Wired
• Sound Emission: 90 dB
• Depth: 2.3"
• Durability: Weatherproof
• Form Factor: Box Mount, Wall Mount
• Height: 6.1"
• Lens Color: Clear
• Width: 5"
• Power Source: AC Supply
• Mount Type: Box Mount, Wall Mount
• Country of Origin: CN
• Package Contents: SH-120 Series 120VAC Weatherproof Selectable Candela Wall Mount Horn Strobe BBX-5 weather proof backbox
• Style: Industrial
• UPC: 785192017813
• Rated Voltage: 120 VAC 60Hz
• Max RMS Operating Current (mArms): N/A (current varies with horn setting)
• Light Output: 110 cd on axis
• Flash Rate: 72 per min.
• Operating Voltage Range: 96-132 VAC
• Operating Temperature Range: -40°F to 151°F (-40°C to 66°C)
• Construction Type: indoor/outdoor
• Materials: ABS housing, polycarbonate lens
• Device Type: HORN / STROBE
• UNSPSC Code: 46171600
