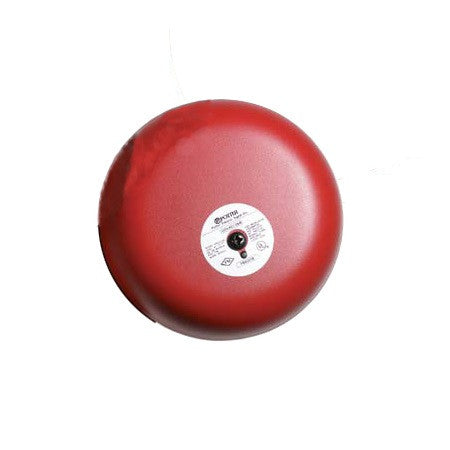

Potter Electric 1808120 PBA-1208 Alarm Bell 8 Inch

Product Description

The POTTER ELECTRIC 1808120 PBA-1208 is a vibrating type alarm bell designed for use as a fire, burglar, or general signaling device. It features low power consumption and high decibel ratings. The unit mounts on a standard 4" (101mm) square electrical box for indoor use and has a red powder coating.

• UL, ULC, and FM Approved
• Low power consumption
• High decibel ratings

Product Highlights

This 8-inch steel alarm bell operates at 120VAC with a max current of .05A, and is suitable for both indoor and outdoor environments.

Product Information

Standard Information

• Brand: POTTER ELECTRIC
• Manufacturer Part Number: 1808120

Technical Specifications

• Model Number: PBA-1208
• Item Number: 1808120
• Size: 8 Inches
• Voltage: 120VAC
• Max. Current: 0.05A
• Typical dB at 10 ft.: 99
• Minimum dB at 10 ft.: 84
• Service Use: Fire Alarm, General Signaling, Burglar Alarm
• Environment: Indoor or outdoor use -40° to 150°F (-40° to 66°C)
• Termination: 4 No. 18 AWG stranded wires
• Finish: Red powder coating
• Application: General Signaling
• Coating: Red Powder Coat
• Collection: PBA-AC
• Diameter: 8 in
• FM Approved: Yes
• Lettering: WARNING
• Material: Steel
• Product Type: Alarm Bell
• UL Listed: UL 464/UL 1638
• Volts: 120V
