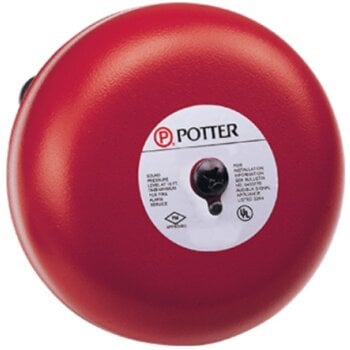

Potter Electric 1806120 PBA-1206 6 inches Bell 120VAC

Product Description

The POTTER ELECTRIC 1806120 PBA-1206 is a 120VAC 6" bell designed for fire, burglar, and general signaling applications. These vibrating bells feature low power consumption and high decibel ratings. It mounts on a standard 4" square electrical box for indoor use, or with a BBK-1 weatherproof backbox for outdoor applications.

• Listed for indoor and outdoor use
• Low power consumption
• High decibel ratings
• UL, ULC, and FM Approved

Product Highlights

The Potter PBA-1206 alarm bell is suitable for fire alarm, burglar alarm, and general signaling systems. It has a red powder coating and can be used indoors or outdoors.

Product Information

Standard Information

• Brand: POTTER ELECTRIC
• Manufacturer Part Number: 1806120

Technical Specifications

• Device Type: BELL
• Brand: Potter
• Type: Vibrating
• Model: PBA-1206
• MPN: PBA-1206
• Size (inches): 6
• Voltage: 120VAC
• Current (Max.): 0.05A
• Typical dB at 10 ft.: 92
• Minimum dB at 10 ft.: 83
• FM dB: 77
• Size: 6 Inches
• Max. Current: 0.05A
• Manufacturer: Potter Electric Signal Company, LLC
• Condition: New
• Construction: Steel
• Material Qualities: Corrosion Inhibited Surfaces
• Series: PBA-AC/MBA-DC Series
• Mounting: Wall
• Production Status: Active
• Item Name: Alarm Bell
• Voltage Rating: 120 VAC
• Amperage Rating: 0.05 A
• Sound Output: 92 DB
• Material: Composite/Steel
• Finish/Color: Red Powder-Coated
• Industry Standards: UL, FM Approved
• Additional Specifications: Temperature Range: -40 - 150 DEG F
