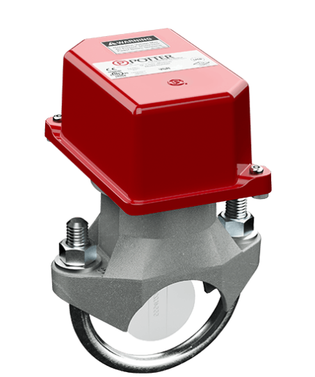

Potter Electric 1144406 VSR-S 6 inches Vane Type Waterflow Alarm Switch W/Retard and Glue-In Union, For CPVC Pipe

Product Description

The Potter Electric 1144406 VSR is a vane type waterflow switch with a non-corrosive insert for use on wet sprinkler systems. It is UL Listed and FM Approved for use on steel pipe. Designed for pipe sizes 2" through 10", the VSR series is compatible with pipe schedules 5 through 40.

• Assembled in USA
• 0-90 second field replaceable time delay retard
• Easy to read retard time delay adjustment knob

Product Highlights

The Potter Electric 1144406 VSR series is the industry standard for flow switches for fire sprinkler systems.

Product Information

Standard Information

• Brand: POTTER ELECTRIC
• Manufacturer Part Number: 1144406
• Country of Origin: USA

Technical Specifications

• Fitting Size 1: 6 in
• Fitting Sizes: 6 in
• Flow Rate: 10 gpm
• Pressure - Maximum: 450 psi
• Temperature Rating: 120
• Application: Fire Protection
• FM Approved: Yes
• UL Listed: Yes
• AMP: 10
• Volts: 125/250V
