Potter Electric 1119720 pav/1119720 air valve

Product Description

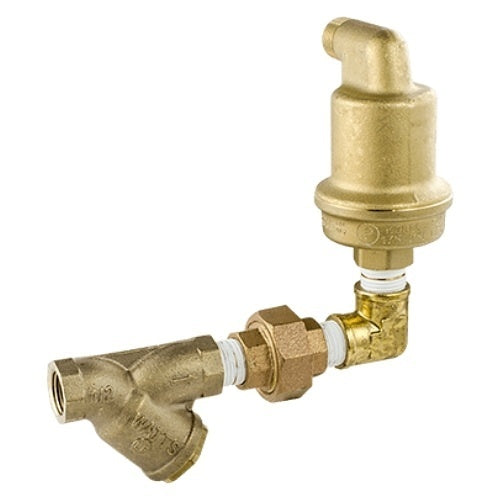

The Potter Electric PAV/1119720 is an automatic float type air vent designed to reduce trapped air in pressurized fire sprinkler systems. This air vent helps protect system piping from corrosion, especially at the air/water interface. It also improves the performance of vane-type waterflow detectors by preventing delays or failures caused by trapped air. The PAV automatically vents air during system filling and vents trapped air over time, closing when water reaches the vent. It features a 1/2" NPT-male connection for safe drainage of any inadvertent water discharge.

• UL Listed for Fire Sprinkler Branch line applications per UL subject 2573
• FM Approved for Automatic Air Release Valve for Sprinkler Systems
• Reduces air trapped in pressurized fire sprinkler systems

Product Highlights

Automatic air vent reduces air in fire sprinkler systems, protecting against corrosion and improving waterflow detector performance.

Product Information

Standard Information

• Brand: POTTER ELECTRIC
• Manufacturer Part Number: 1119720
• Country of Origin: United States

Technical Specifications

• ADI Part Number: PL-PAV
• Brand Name: Potter Electric Signal, LLC
• Manufacturer: Potter Electric Signal, LLC
• Manufacturer Part Number: PAV/1119720
• Product Name: Automatic Air Vent
• Product Type: Air Vent
• Material: Brass
• Application: Fire Sprinkler Systems
• End Connection 1: NPT
• End Connection 2: MNPT
• End Connections: NPT x MNPT
• FM Approved: Yes
• Fitting Size 1: 1/2 in
• Fitting Size 2: 1/2 in
• Fitting Sizes: 1/2 in
• Pressure - High: 175
• UL Listed: UL 2573
• Model Number: PAV-POTTER
• Service Pressure: Up to 175 PSIG
• Temperature Range: 40°F to 120°F (4.5°C to 49°C)
• Orifice: 5/64"
• Construction: Brass
• Number in Pack: 1
• Suitable For: Air vent
