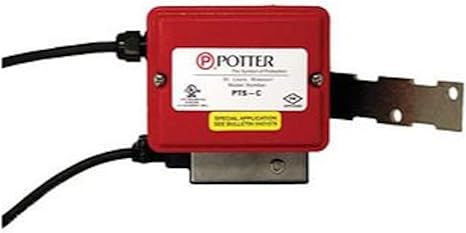

Potter Electric 1010201 PTS-C Plug Type Supervisory Switch

Product Description

The POTTER ELECTRIC 1010201 PTS-C is designed to supervise sprinkler system control valves and secure gates. It is useful for unusual conditions, such as non-rising stem valves. The Nema 6P enclosure allows outdoor mounting, even in areas subject to flooding. Turning the valve wheel will pull the plug out of the receptacle.

• Designed to supervise sprinkler system control valves
• Can be used to secure gates and other applications
• Useful for unusual conditions, such as non-rising stem valves
• UL and cUL Listed, FM Approved, CSFM Listed, NYMEA Accepted

Product Highlights

The PTS-C plug type supervisory switch features a Nema 6P enclosure and sealed reed switch operation. The plug cannot be reinserted after operation until the plug receptacle cover is removed.

Product Information

Standard Information

• Brand: POTTER ELECTRIC
• Manufacturer Part Number: 1010201
• Country of Origin: USA

Technical Specifications

• Brand: Potter Electric Signal
• MPN: 1010201
• Model Number: PTS-C
• Item Number: 1010201
• Enclosure: Non-Corrosive Composite Material
• Environmental Limitations: NEMA 4 and NEMA 6P rated enclosure when proper electrical fittings are used. (IP67)
• Temperature range: -40° F to 140° F (-40° C to 60° C)
• Housing Cover Tamper: Activated by housing cover removal.
• Contact Ratings: SPDT Plug Contacts: 100 mA at 28 VDC/AC 250 mA at 12 VDC/AC SPDT Cover Tamper: 250 mA at 28 VDC/AC
• Cable: 2-wire, 18 Ga. Waterproof - Approx. 8' (2,43m) long
• Manufacturer: POTTER ELECTRIC SIGNAL COMPANY
• UPC: 785192006749
• Device Type: VALVE SUPERVISORY SWITCH
• UNSPSC Code: 46171600
• Country of Origin: United States
