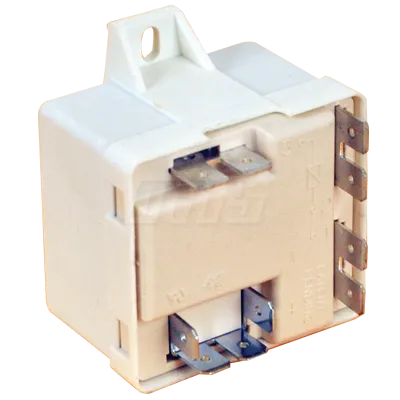

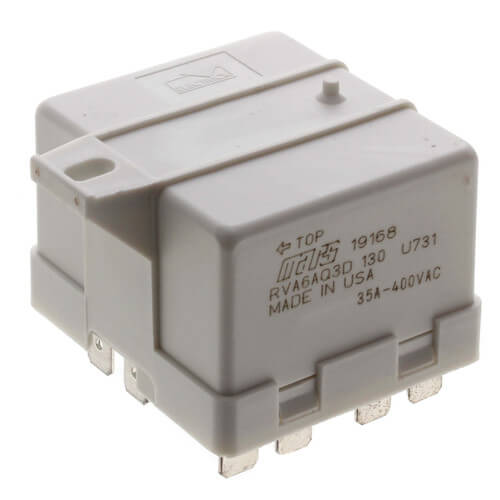

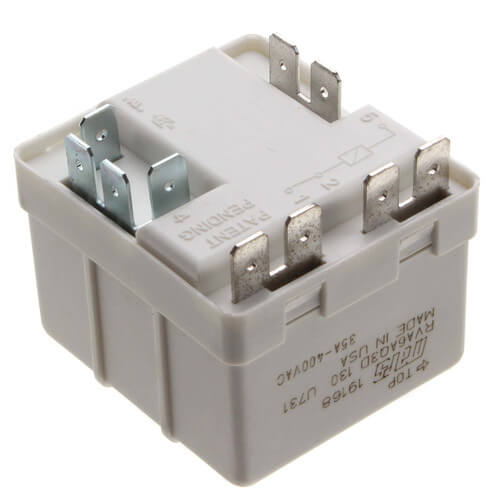

MARS 19168 Non-Positional Potential Relay 502V Coil Voltage

Product Description

The MARS 19168 is a potential relay designed for HVAC applications. This relay operates with a continuous coil voltage of 502 volts. Its pick-up range is from three hundred twenty-five volts minimum to three hundred forty-five volts maximum. The drop-out voltage limit is a maximum of one hundred thirty-five volts. It has a lightweight build of zero point two pounds, making it suitable for various installations.

• Rated for non-positional use in HVAC systems
• Coil voltage of 502 VAC
• Pick-up and drop-out voltages accommodate a wide range of applications

Product Highlights

The 19168 relay is CSA certified and UL listed. It features a universal break-off bracket that allows easy adaptation to different mounting situations. This relay is ideal for maintaining efficient control of HVAC equipment.

Product Information

Standard Information

• Manufacturer: MARS
• MPN: 19168

Technical Specifications

• Coil Voltage: 502 VAC
• Pick-Up Voltage: 325 to 345 VAC
• Drop-Out Voltage: 135 VAC Max
• Contact Rating: 35 A @ 480 VAC
• Mounting Type: Tab
• Terminal Type: 1/4 Inch Quick Connect
• Dimensions: 2.035 inches height
• Weight: 0.2 lbs
