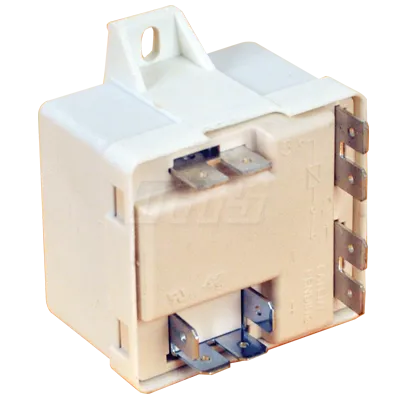

MARS 19167 167 Potential Relay 420V Coil Voltage

Product Description

The MARS 19167 potential relay is designed for continuous coil operation at 420 volts. This relay operates with a pickup voltage range of two hundred ninety-five volts minimum to three hundred fifteen volts maximum. The dropout voltage is capped at one hundred twenty-five volts. This relay is lightweight, weighing two tenths of a pound.

• Continuous coil voltage: 420 volts
• Pickup voltage range: 295V to 315V
• Dropout voltage: 125V max

Product Highlights

This relay controls electrical circuits in HVAC systems efficiently. It is built for reliability in high-demand environments.

Product Information

Standard Information

• Manufacturer: MARS
• Product Type: Potential Relay

Technical Specifications

• Coil Voltage: 420 VAC
• Pickup Voltage Range: 295V - 315V
• Dropout Voltage: 125V max
• Weight: 0.2 lbs
• Dimensions: 2.035 inches height
• Mounting Type: Tab mount
• Terminal Type: 1/4 inch quick connect
• Amperage Rating: 35 A
