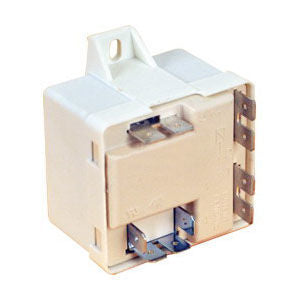

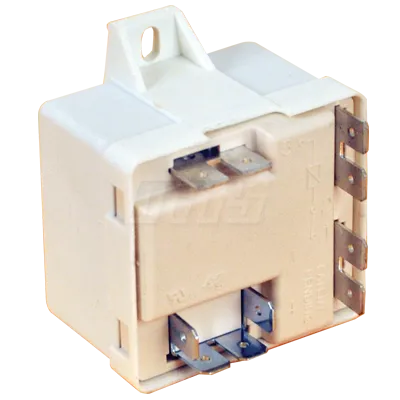

MARS 19165 Potential Relay 332V 165

Product Description

The MARS 19165 is a potential relay designed for use in HVAC systems. This relay features a continuous coil voltage of three hundred thirty-two volts, ensuring reliable operation. The pick-up voltage ranges from one hundred sixty-eight volts minimum to one hundred eighty-two volts maximum, while the drop-out voltage does not exceed ninety volts. Weighing only zero point four pounds, this relay is compact and suitable for various applications.

• Continuous coil voltage of three hundred thirty-two volts.
• Pick-up voltage between one hundred sixty-eight and one hundred eighty-two volts.
• Drop-out voltage maximum of ninety volts.

Product Highlights

This product is suitable for HVAC applications and meets UL and CSA standards.

Product Information

Standard Information

• Manufacturer: MARS
• Model Number: 19165

Technical Specifications

• Coil Voltage: 332 VAC
• Amperage Rating: 35 amps
• Voltage Rating: 480 VAC
• Pick-Up Voltage: 171/184 VAC
• Drop-Out Voltage: 55/90 VAC
• Weight: 0.4 lbs
• Dimensions: 2.035 inches H
• Mounting Type: Tab Mount with 1/4 Inch Quick Connect Terminals
