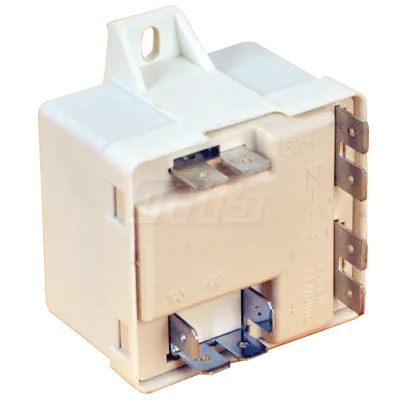

MARS 19169 Potential Relay 332V Coil Voltage

Product Description

The MARS potential relay, MPN 19169, is designed for HVAC systems. It operates on a continuous coil voltage of 332 volts. The relay picks up with a minimum voltage of 180 volts and maximum voltage of 193 volts. It drops out at a maximum of 105 volts, making it suitable for various applications.

• Continuous coil voltage: 332V
• Pick up voltage range: 180V to 193V
• Drop out voltage: 105V max

Product Highlights

This relay is essential for controlling motors and other equipment in HVAC systems. It features a compact design and is UL listed for safety.

Product Information

Standard Information

• Manufacturer: MARS
• Weight: 0.1 lbs

Technical Specifications

• Model Number: 19169
• Coil Voltage: 332 VAC
• Pick Up Voltage: 180V Min to 193V Max
• Drop Out Voltage: 105V Max
• Application: HVAC
• Terminal Type: 1/4 Inch Quick Connect
• Mounting Type: Tab
• Standard/Approvals: UL and CSA approved
