Pos-E-Kon MS206C male screw terminal insert 6 contacts

Product Description

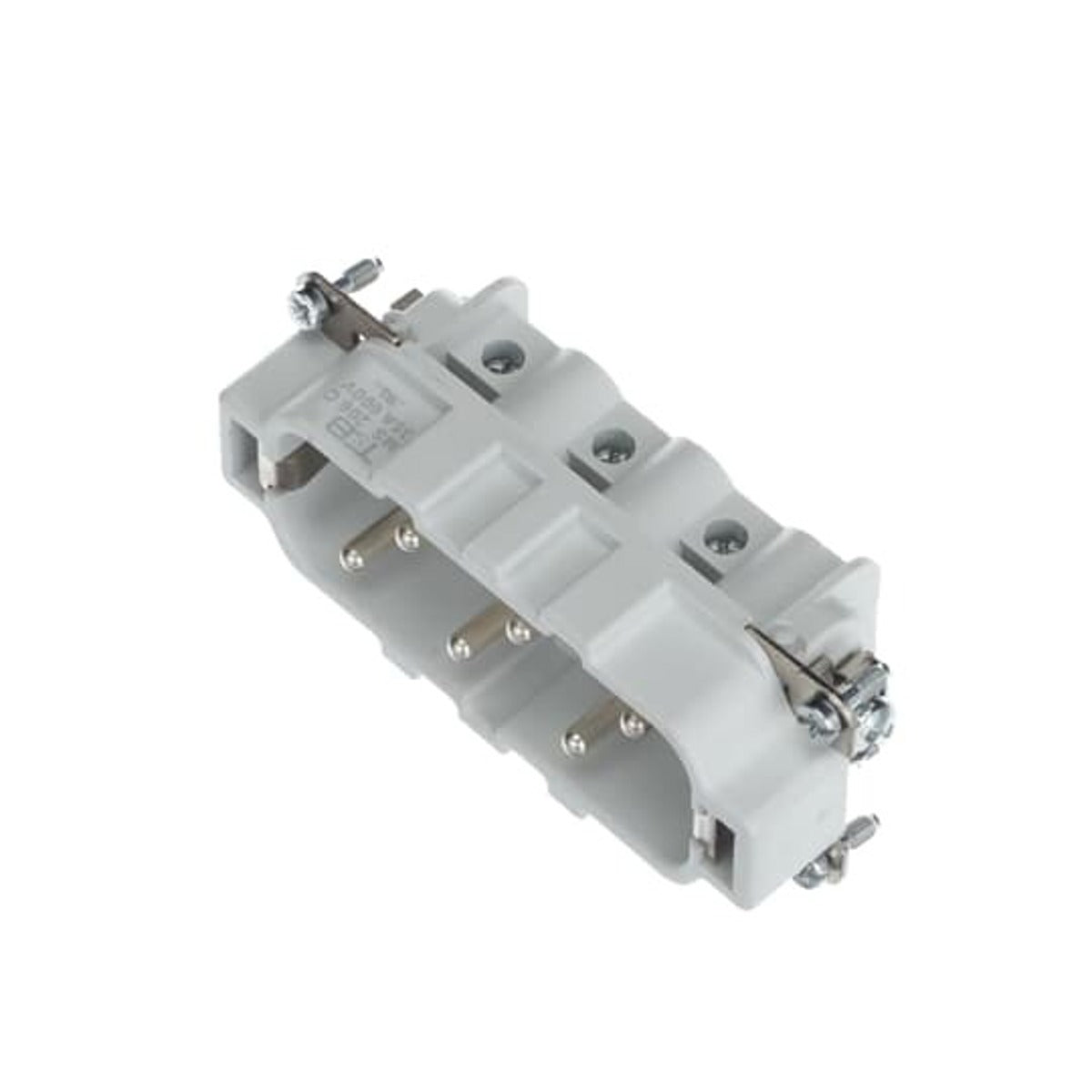

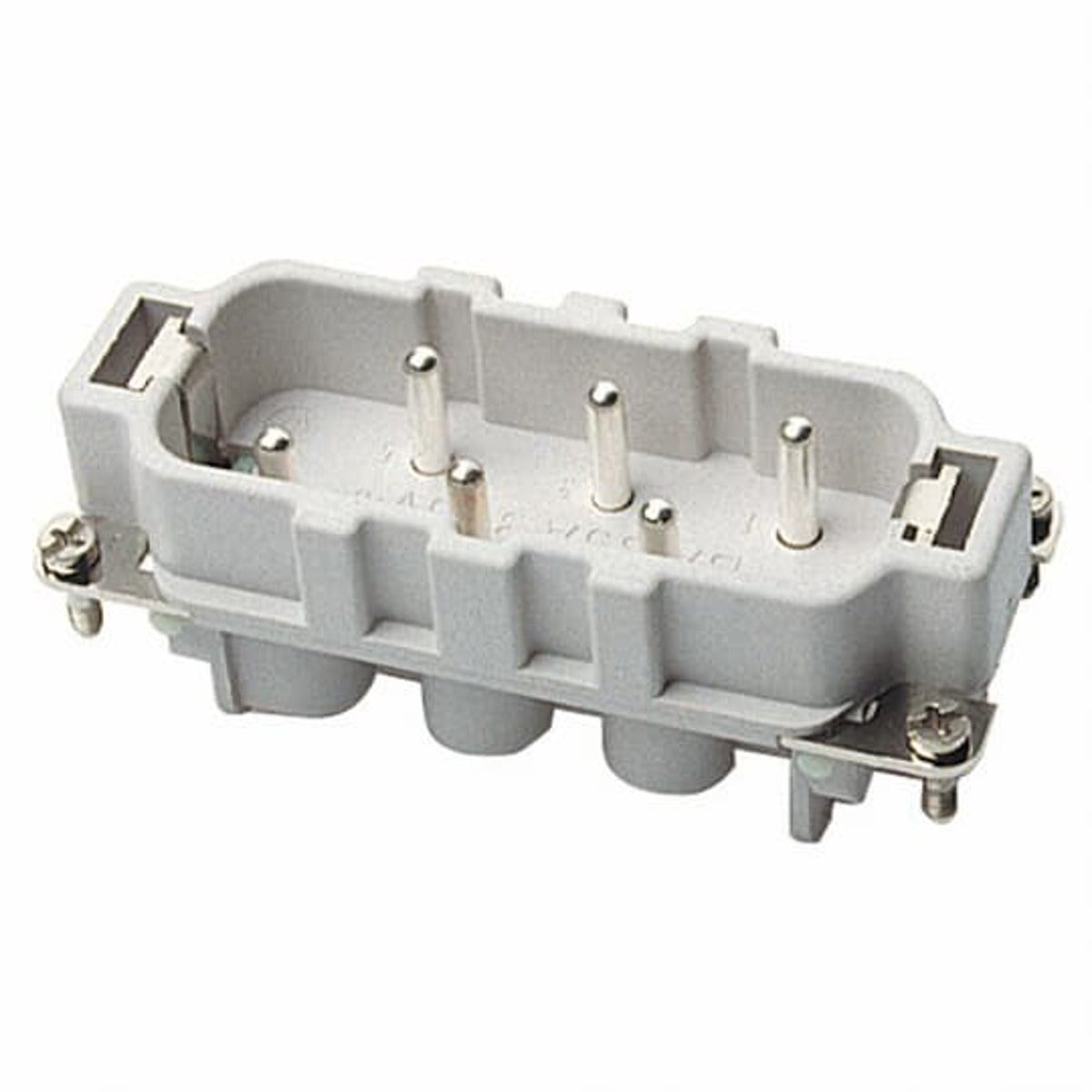

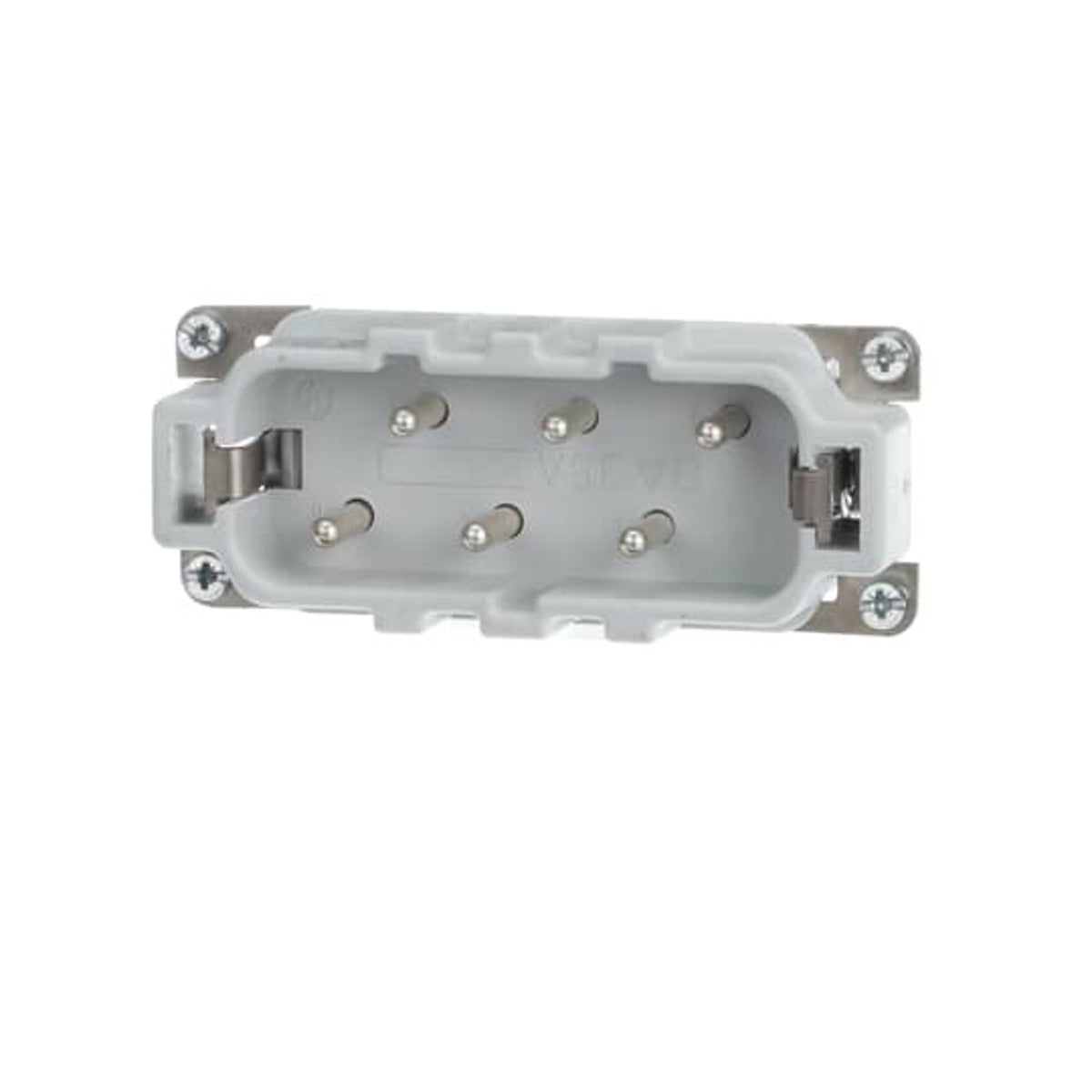

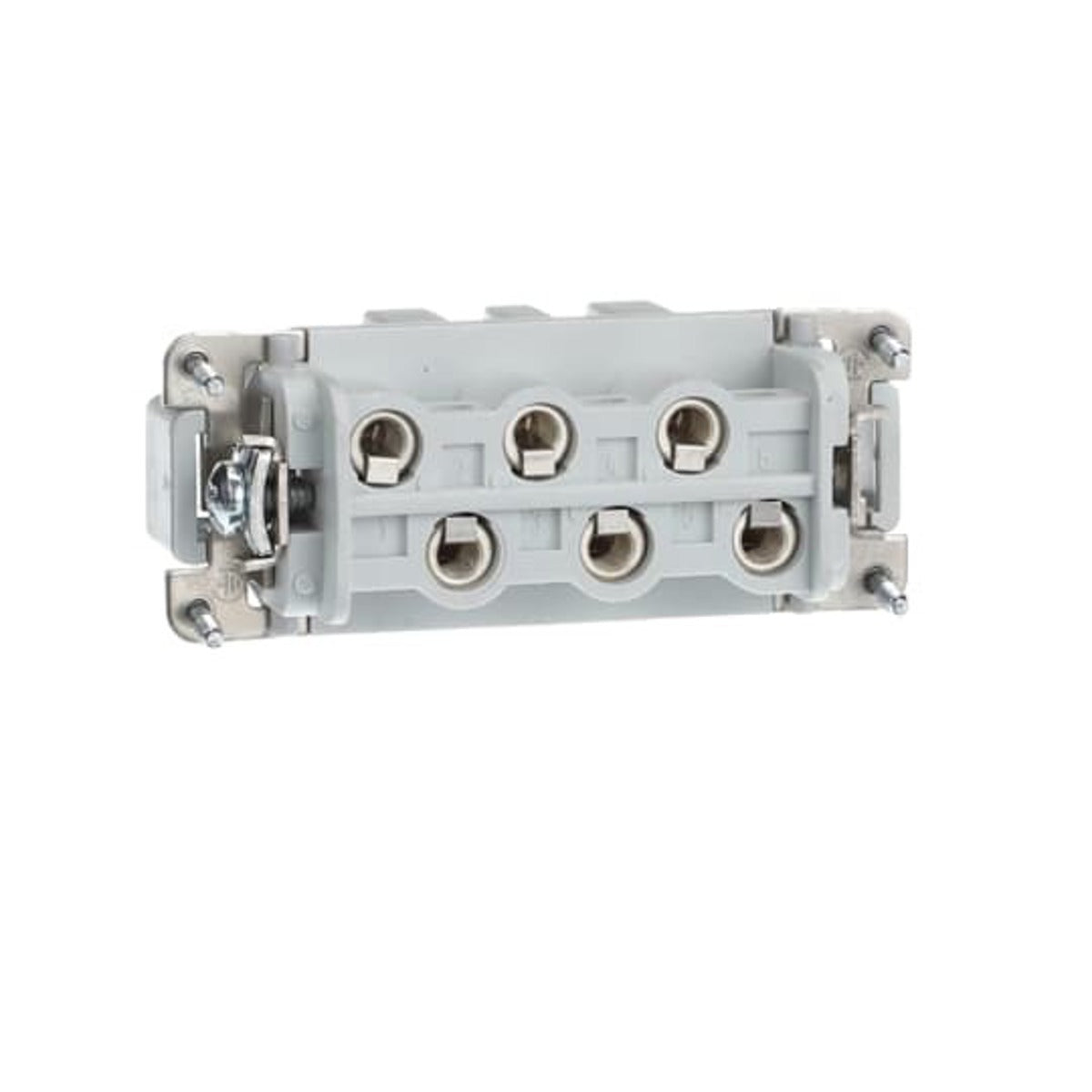

The Pos-E-Kon MS206C is a male screw terminal insert designed for use with C series terminal blocks. It features 6 contacts with ground (1-6) and is made from glass-filled thermoplastic. This insert supports a voltage rating of 600 VAC and a wire size of 20-10 AWG. It is suitable for use with C series connectors.

• For use with C series
• 6 contacts with ground (1-6)
• Pin and Sleeve Connector Insert

Product Highlights

Male screw terminal insert with 6 contacts, designed for C series terminal blocks and connectors.

Product Information

Standard Information

• Brand: POS-E-KON
• Manufacturer Part Number: MS206C
• Country of Origin: Germany

Technical Specifications

• Catalog Number: MS206C
• Manufacturer: ABB - Installation Products
• Brand: Pos-E-Kon
• Country of Origin: Germany
• Made in USA: No
• Application: For use with C series
• Material: Glass-filled Thermoplastic
• UPC: 786210791197
• GTIN: 00786210791197
• Item Type: Terminal Inserts-Male
• Voltage Rating: 600 VAC
• Wire Size: 20-10 AWG
• Type: Screw Terminal Contact Carrier Male Pin Insert
• Current Rating: 35 Ampere
• Number of Contacts: 6
• Category: Component terminal block
• Amperage Rating: 35 Amps
• RoHS: RoHS3 Compliant
• Number of Positions: 6
• Connection Type: Screw/Male
• Series: C Series
• Temperature Rating: -40 to 257 deg F
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, CSA Certified, UL94 V-0 Flammability Rating
• Suitable For Use With: C Series Connector
• UNSPSC: 39121410
• Used On: C Series 35 Amp 600 Volt AC Pin and Sleeve Connector
