Polywater AFT-16 AFT Spray Foam Sealant 16 oz

Product Description

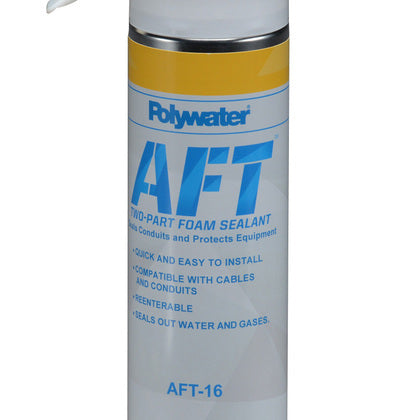

The POLYWATER AFT-16 AFT Spray Foam Sealant is an easy-to-use, fast-setting, and durable spray foam sealant for system hardening. This sprayable foam sealant is a semi-permanent, water- and air-tight solution that helps protect mission-critical equipment from moisture, water, rodents, and gasses. It expands and cures in minutes to create a rigid, airtight, and watertight seal.

• Quick & Easy Installation: Complete application in seconds, cures in minutes, which saves labor
• Reliable: Closed-cell structure protects cable network with 10-ft (3-m) of continuous water head pressure
• Re-enterable: Easily removed to facilitate new cable installation or old cable removal

Product Highlights

This multi-purpose, closed-cell spray foam sealant is effective in a wide range of field applications and is compatible with a wide range of cable jacket and conduit materials.

Product Information

Standard Information

• Brand: POLYWATER
• Manufacturer Part Number: AFT-16
• Country of Origin: Unknown

Technical Specifications

• UL Recognized Component: Passes UL 94 with a class HBF rating
• Meets global codes and industry standards for sealing raceways and building entrances: NEC Articles 225.27, 230.8, 300.5 (G),300.7(A) 501.15 (B)(2); CSA 6-300 (3), 6-312 (1), 12-928 18-094 (3); TIA 5.1.1.2.8, 7.4.2.8.1, TDMM, IEC
• Adhesion: Has good adhesion to PVC, RGS, PE, EMT, and IMC. Passes hydrostatic testing
• Chemical Resistance: Is chemically resistant to gasoline, oils, dilute acids and bases, and most unsaturated hydrocarbons
• In Service Temperature Use Range: -20°F to 200°F (-30°C to 120°C)
• Cable Compatibility: AFT two-part foam sealant is compatible with common cable jacket materials. The cured foam is an inert solid that does not affect cable components.
• Cure Rate: AFT two-part foam sealant can be used at temperatures down to 45° F (7° C). At lower temperatures the reaction slows, but the sealant will completely foam and cure with time. AFT foam expands two times its volume as it is dispensed. Full expansion is complete in under 2 minutes at 70° F (21° C). It will take 3 to 5 minutes to be tack free. During this time do not move cables or touch foam.
• Approvals/Codes: AFT is UL recognized and passed UL94 with a Class HBF fire retardant rating. Polywater AFT Sealant meets NESC code sections 322 B4 and 355 D; and 2008, 2011, 2014, and 2017 NEC conduit sealing code requirement Articles 225.27, 230.8, 300.5 (G), 300.7 (A) on Raceway Seals, and 501.15 (B)(2).
• Application: Shake can for 60 seconds to mix. Lift hinge and insert dispensing nozzle into top orifices so that the arrow lines up with the dispensing nozzle. Invert aerosol can. Insert nozzle all the way into the seal space and fully squeeze the hinge to spray sealant into the conduit.
• Size: 16 oz
