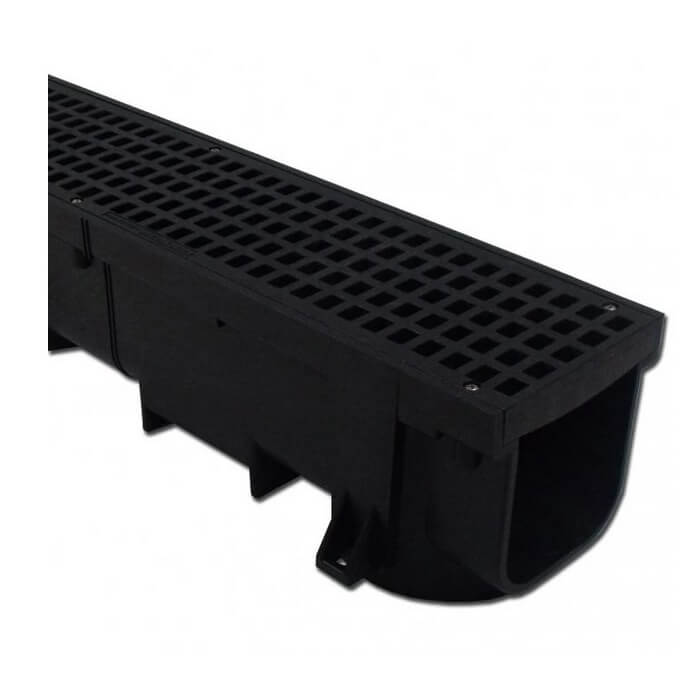

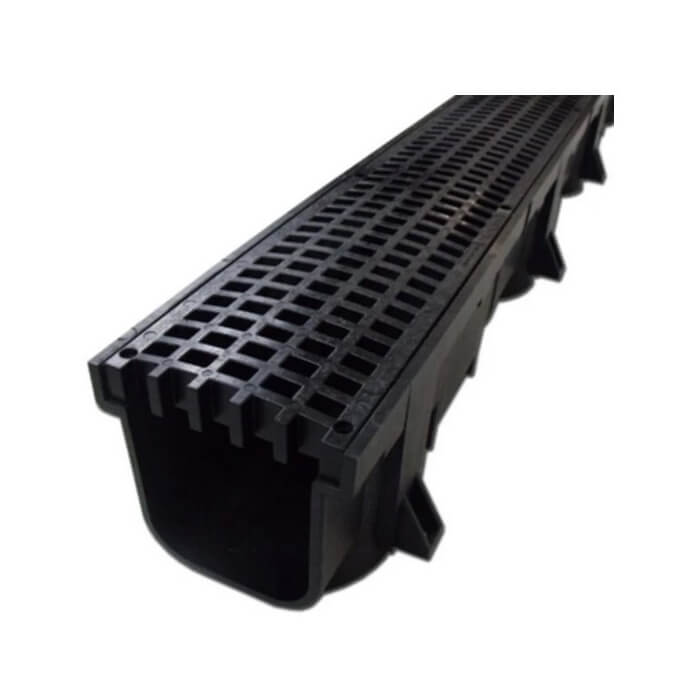

Polylok PL-90860 4 Black Heavy Duty Trench Drain Assembly W/ADA & Heel Proof Plastic Grate & Screws 5^ Wide

Product Description

The POLYLOK PL-90860 heavy-duty trench drain assembly features an ADA and heel-proof plastic grate and screws, with a width of 5 inches. Engineered for flexibility, this trench drain is H-20 wheel load rated when cast in reinforced concrete. Its modular design includes interlocking components for quick connections. Each segment is 4 feet long and can be cut down to 12-inch increments.

• ADA compliant grates are reversible from a flat side to a 3/16" convex side
• Trench drain & grate come in 48" (4 feet) sections that can be cut down to 12", 24" & 36"
• All outlet ports accept 3" SCHD 40 pipe, 4" SDR 35 pipe & 4" SCHD 40 pipe

Product Highlights

The Polylok PL-90860 trench drain offers easy installation with interlocking components and reversible ADA compliant grates. Features cut lines every foot and outside holes for rebar positioning.

Product Information

Standard Information

• Brand: POLYLOK
• Manufacturer Part Number: PL-90860

Technical Specifications

• Size: 5-1/2"
• Material: Polypropylene
• Product Type: Drain
• Standards Met: ADA
• Max Flow (GPM): 240
• Length (Inches): 48"
• Part Number: PL-90860 (Black Trench Drain & Grate)
• Wheel Load Rating: H-20 wheel load rating when cast in reinforced concrete
