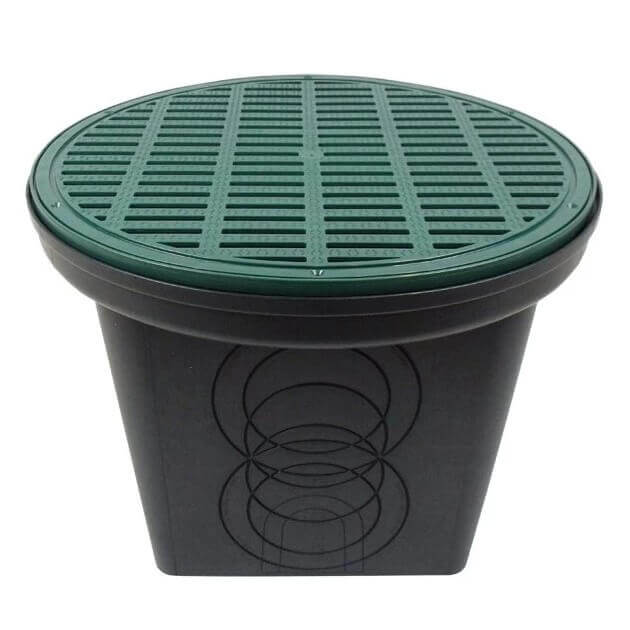

Polylok 3017-207G 20 inches Round Catch Basin with Grate 7 Hole

Product Description

The POLYLOK 3017-207G is a 20-inch round catch basin, constructed from durable polyethylene, designed for effective drainage management. This 7-hole drain box is suitable for diverse applications, including residential properties and golf courses. It offers versatile pipe compatibility, accepting 2-inch, 3-inch, 4-inch, and 6-inch pipes. The basin is also compatible with Polylok 20-inch risers, allowing for easy adjustment to grade.

• Easy to install
• Accepts risers to bring to grade
• Accepts 6", 4", 3" & 2" pipe

Product Highlights

Durable polyethylene 20-inch round catch basin with 7 holes, compatible with various pipe sizes and Polylok risers for versatile drainage solutions.

Product Information

Standard Information

• Brand: POLYLOK
• Manufacturer Part Number: 3017-207G
• Country of Origin: USA

Technical Specifications

• Product Type: Catch Basin
• Shape: Round
• Material: Polyethylene
• Number of Holes: 7
• Diameter: 20 inches

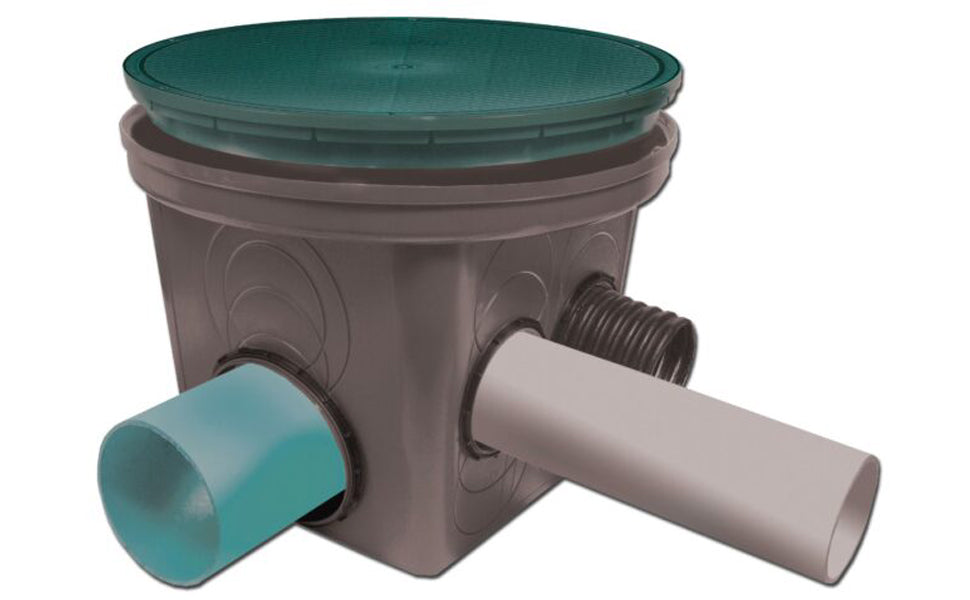

• Pipe Compatibility: 2", 3", 4" & 6" pipe
• Riser Compatibility: Polylok 20" Risers
• Basin Capacity: 15 gallon
• Included Seals: Four 4" seals w/ nuts (accepts 2", 3", 4" - all for SCH40 or SDR35 pipe, and 4" corrugated pipe)
• Included Screws: Six #10x1-1/2" stainless steel square drive

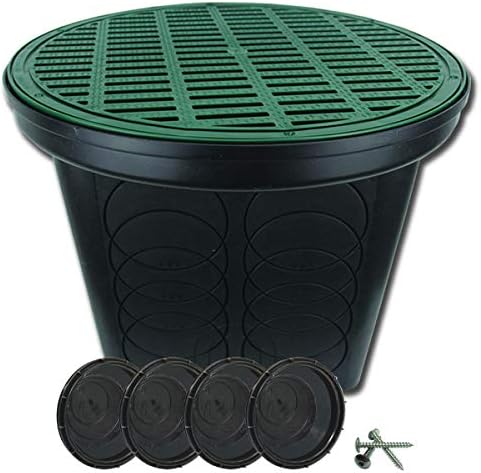

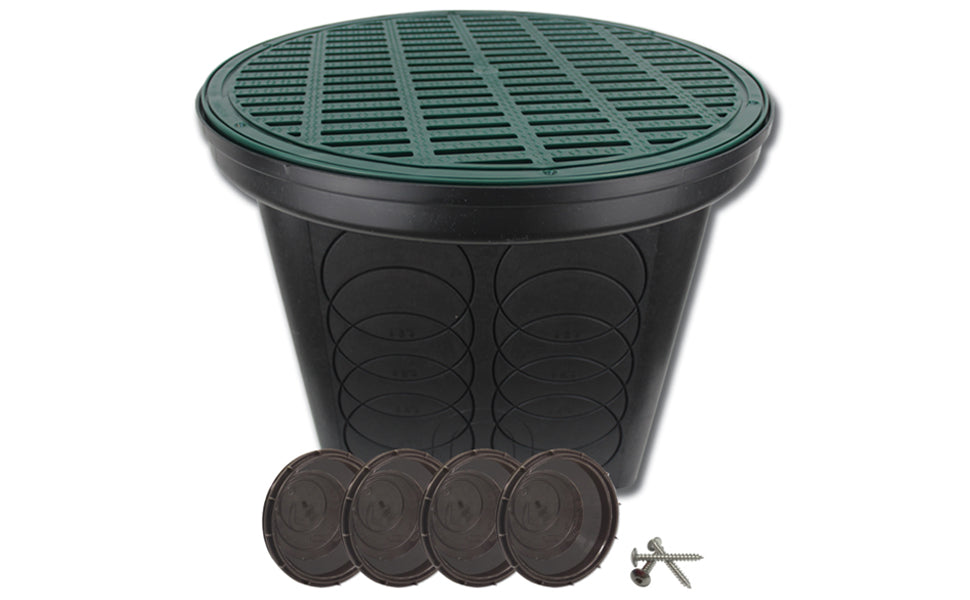

• Includes: Grate
