Polaris ISPB2/0-2B Conn 2/ Power

Product Description

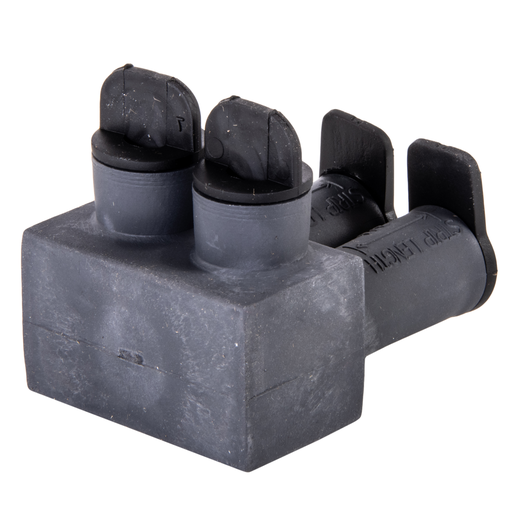

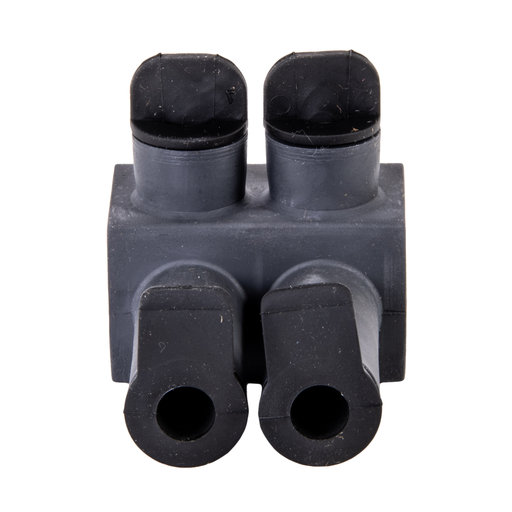

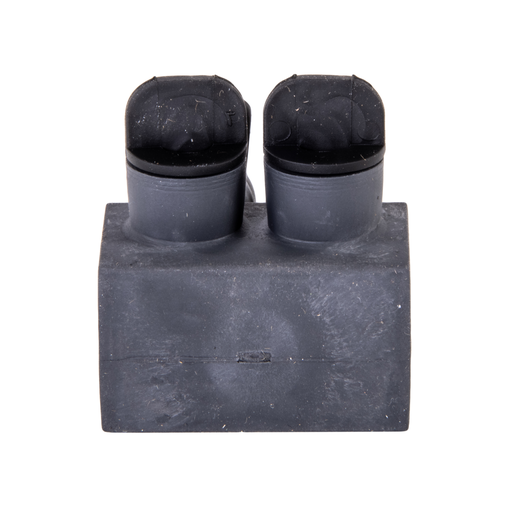

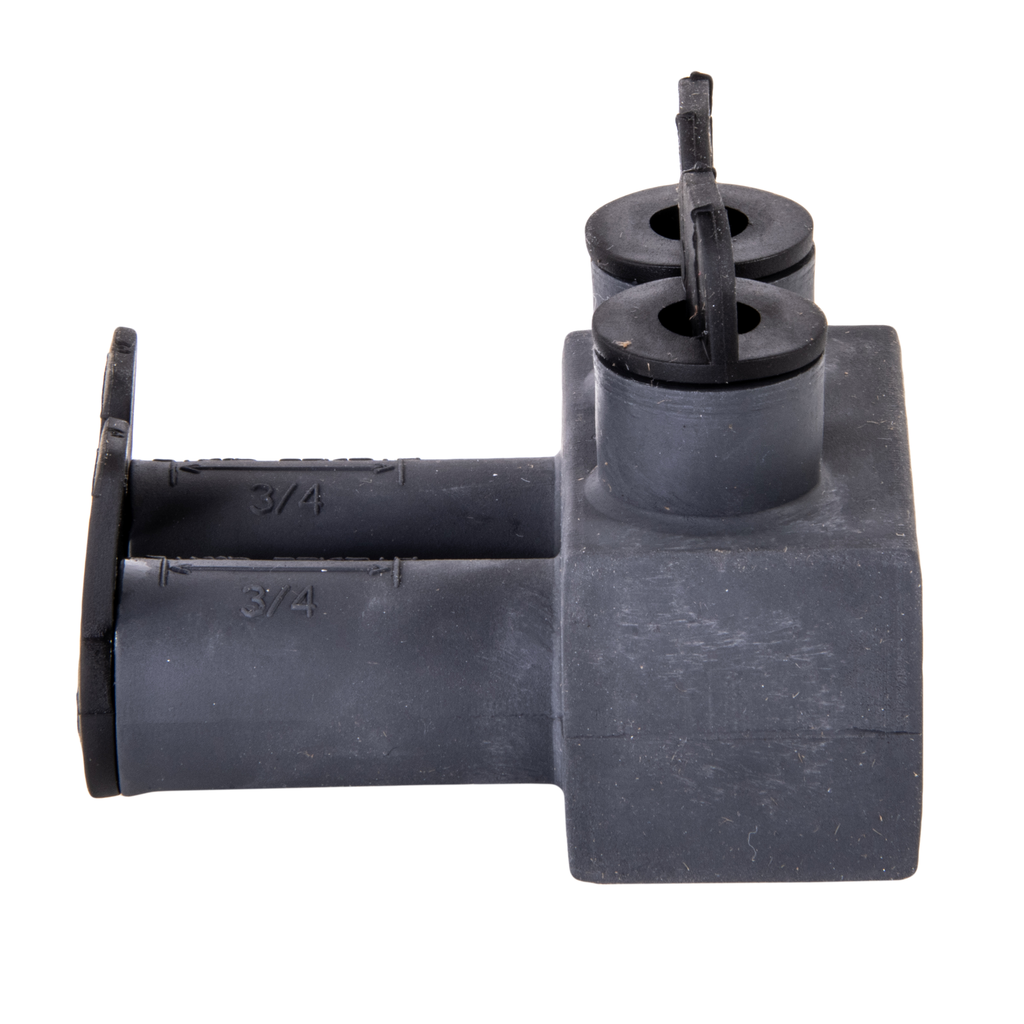

The Polaris ISPB2/0-2B Multi-Tap Direct Burial Single-Sided Entry Connector works with 2 ports for two over zero to fourteen AWG wires. Constructed from aluminum alloy, it is insulated with a layer of rubber that has high-dielectric strength. The design includes access plugs over hex screws for tightening the radial-tipped set screws and is pre-loaded with an oxide inhibitor for improved performance. This connector is rated for use in wet or damp locations and direct burial applications.

• Compatible with 2/0 - 14 AWG wire sizes
• Can be installed easily with a hex key and torque wrench
• Meets UL 486D and ANSI C119.1 standards

Product Highlights

This connector is ideal for temporary applications where water exposure may occur, making it suitable for various project needs.

Product Information

Standard Information

• Brand: Polaris
• Sub Brand: Polaris EDGE

Technical Specifications

• Applications: Terminate stranded wire into European/Metric-style terminal blocks
• Material: Rubber
• Number of Conductors: 2
• Number of Poles: 1 pole
• Size: Length one point nine three inches, Width two point six five inches, Height two point one inches
• Standard: cULus
• Temperature Rating: Ninety degrees C
• Type: Submersible pedestal connectors
• Voltage: 600 Volt
• Wire Size: Fourteen to zero AWG
• Wire Type: Class B and C
