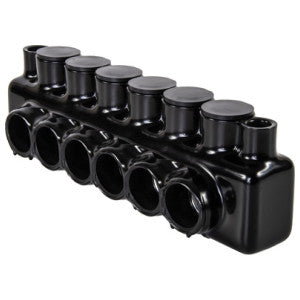

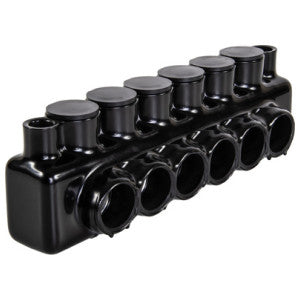

Polaris IPLMD600-6 Insulated Multi-Tap Connector 6-Port 6 AWG to 600 MCM REPLACEMENT MPN

Product Description

The Polaris IPLMD600-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 600 MCM - 6 AWG wires. This connector forms secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor.

• Forms secure connections between multiple conductors
• Rounded design with UV-resistant insulation coating
• Installs with a hex key and torque wrench; no cover or taping needed

Product Highlights

The Polaris IPLMD600-6 is ideal for splicing applications in cable trays, panel boards, ducts, raceways, or troughs.

Product Information

Standard Information

• Brand: POLARIS
• Manufacturer Part Number: IPLMD600-6
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 600 V
• Number of Ports: 6
• Cable Entry: 2 Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 600 KCMIL
• Body Material: Plastisol
• Approval: UL (Canada and US)
• Type: Insulated
• Constructional Feature: Abrasion Resistant, Chemical Resistant
• Temperature Rating: 90 Deg C
