Polaris IPLD250-6 Insulated Multi-Tap Connector 6 Port 250 Kcmil to 6 AWG

Product Description

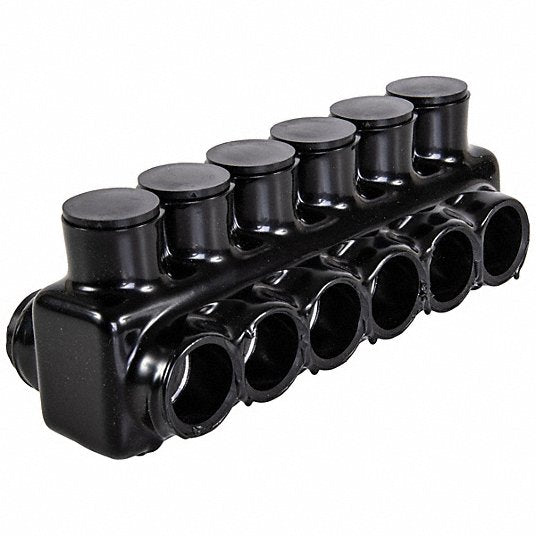

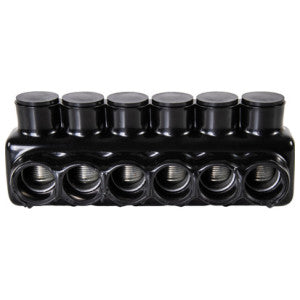

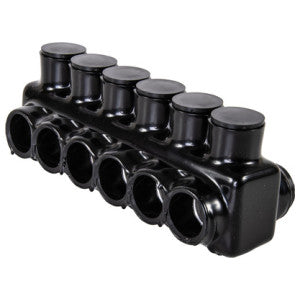

The Polaris IPLD250-6 multi-tap connector forms secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. It features 6 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor. It is designed for use in a wide range of splicing applications.

• Forms secure connections between multiple conductors
• Rounded design with UV-resistant insulation coating
• Installs with a hex key and torque wrench; no cover or taping needed

Product Highlights

The Polaris IPLD250-6 multi-tap connector features 6 ports, dual-sided entry, and is pre-loaded with an oxide inhibitor.

Product Information

Standard Information

• Brand: POLARIS
• Manufacturer Part Number: IPLD250-6
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121409
• Insulation Material: Plastisol
• Length: 5.52 in.
• Voltage Rating: 600/1000 V
• Number of Ports: 6
• Cable Entry: 2 Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 6 AWG Stranded
• Maximum Conductor Size: 250 KCMIL Stranded
• Body Material: Aluminum
• Approval: UL (Canada and US)
• Type: Insulated
• Constructional Feature: Abrasion Resistant, Chemical Resistant
• Temperature Rating: 90 Deg C
• Brand: POLARIS
• Manufacturer Part Number: IPLD250-6
• Numeric ID: 2510411
• Compatible with Product Type: Copper and Aluminum Cables
• Connector Type: Double-Sided Entry
• Direct Burial Rated: No
• Finish: Plastisol
• For Conductor Material: Aluminum; Copper
• Head Style: Hex
• Hex Size: 5/16 in
• Maximum Temperature: 194 °F
• Maximum Voltage: 600 V
• For Stranded Copper Wire Size - Maximum: 250 kcmil
• Minimum Temperature: -49 °F
• For Stranded Copper Wire Size - Minimum: 6 AWG
• Overall Width: 2.28 in
• Screw Material: Aluminum
• Special Features: Abrasion and Chemical Resistant; Eliminates the Need for Cover and Taping; Insulated With High-Dielectric Strength Plastisol; Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws; Supplied With Removable Plugs to Close the Entry Port Not Being Utilized; UV Resistant; Will Not Support Combustion; Wire Entry Ports on Both Sides of the Connector Allow for Access From Either Side
• Standards: cULus; UL 486A
• Strip Length: 1-3/8 in
• Torque: 360 in-lb
