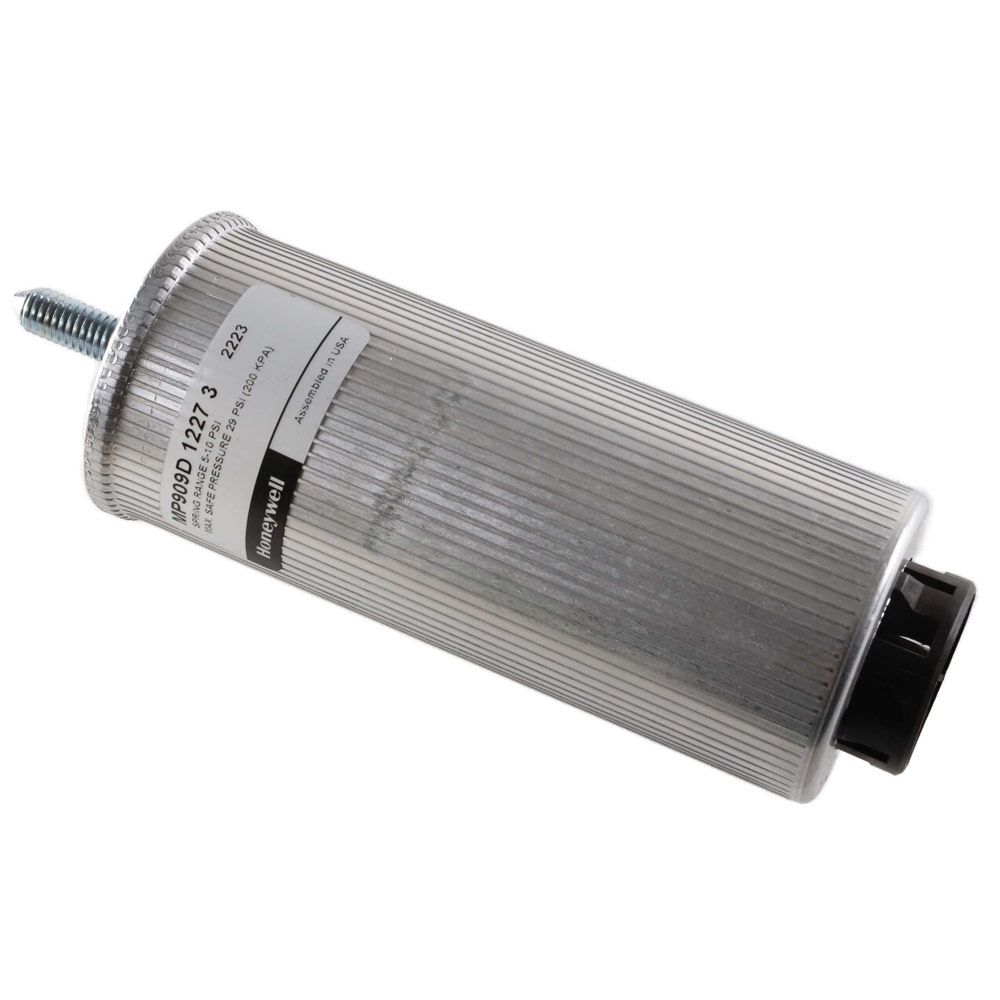

Honeywell MP909D1227 Linear Pneumatic Actuator 5-10 PSI

Product Description

The Honeywell MP909D1227 Linear Pneumatic Actuator offers a robust solution for controlling variable air volume and damper systems in HVAC applications. Featuring a vast operational range from 5 to 10 PSI and a maximum air pressure of 30 PSI, this actuator is perfect for small to medium-sized applications.

• Effective for variable volume and small damper control.
• Includes a spring return mechanism, enhancing reliability.
• Engineered for durability and performance within industrial settings.

Product Highlights

With a 2.4-inch stroke and dual connection options for 5/32 inch or 1/4 inch O.D. plastic tubing, this actuator seamlessly integrates into diverse systems. Its compact, rugged design ensures long-term reliability and performance.

Technical Specifications

• Stroke Length: 2.4 inches
• Operational PSI Range: 5 to 10 PSI
• Max Air Pressure: 30 PSI
• Net Force at 0 PSI: 15 pounds
• Net Force at 18 PSI: 30 pounds
• Functional Temperature Range: -40 to 158 degrees Fahrenheit
• IP Rating: IP65
