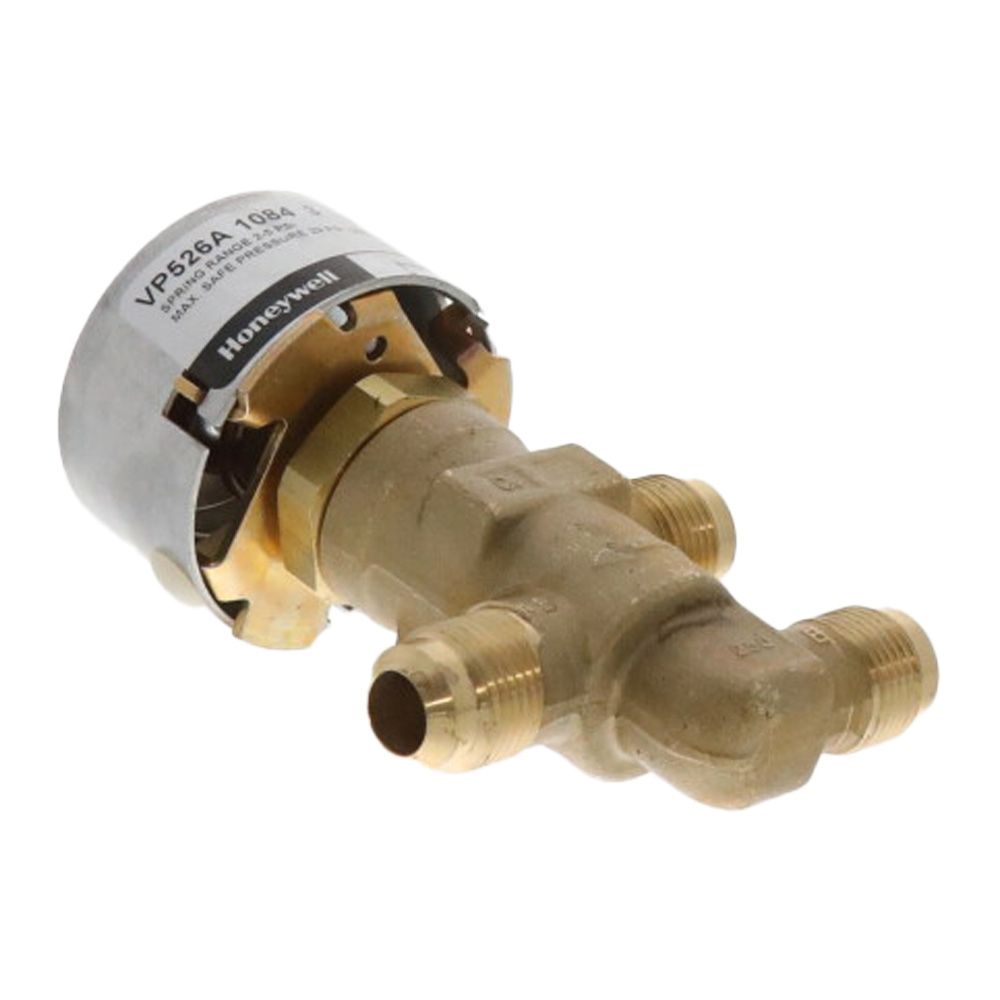

Honeywell VP526A1084 Pneumatic Three-Way Mixing Valve 1/2 OD X 3/8 Nominal

Product Description

The Honeywell VP526A1084 pneumatic 3-way mixing valve is designed for controlling water flow in HVAC systems. Equipped with a 2-5 psi spring range and a 1.0 Cv flow capacity, it provides precise proportional control. Ideal for air conditioning and fan coil systems.

• Provides proportional control of hot and cold water
• 2-5 psi spring range
• 1.0 Cv flow capacity

Product Highlights

This valve is designed for easy installation in tight spaces. It features a direct-acting, rolling diaphragm actuator with a high-temperature plastic air connector, stainless steel stem, and brass seats that ensure metal-to-metal seating.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VP526A1084
• Model: VP526A

Technical Specifications

• Valve Size: 1/2
• Valve Connection: Flare
• Piping Configuration: 3-Way
• Body Material: Bronze
• Max Pressure: 150 psi WOG
• Weight: 1.41 lbs
• Spring Range: 2-5 psi
• Flow Capacity: 1.0 Cv
• Temperature Range: 35°F to 250°F
• Country of Origin: United States
