Product Description

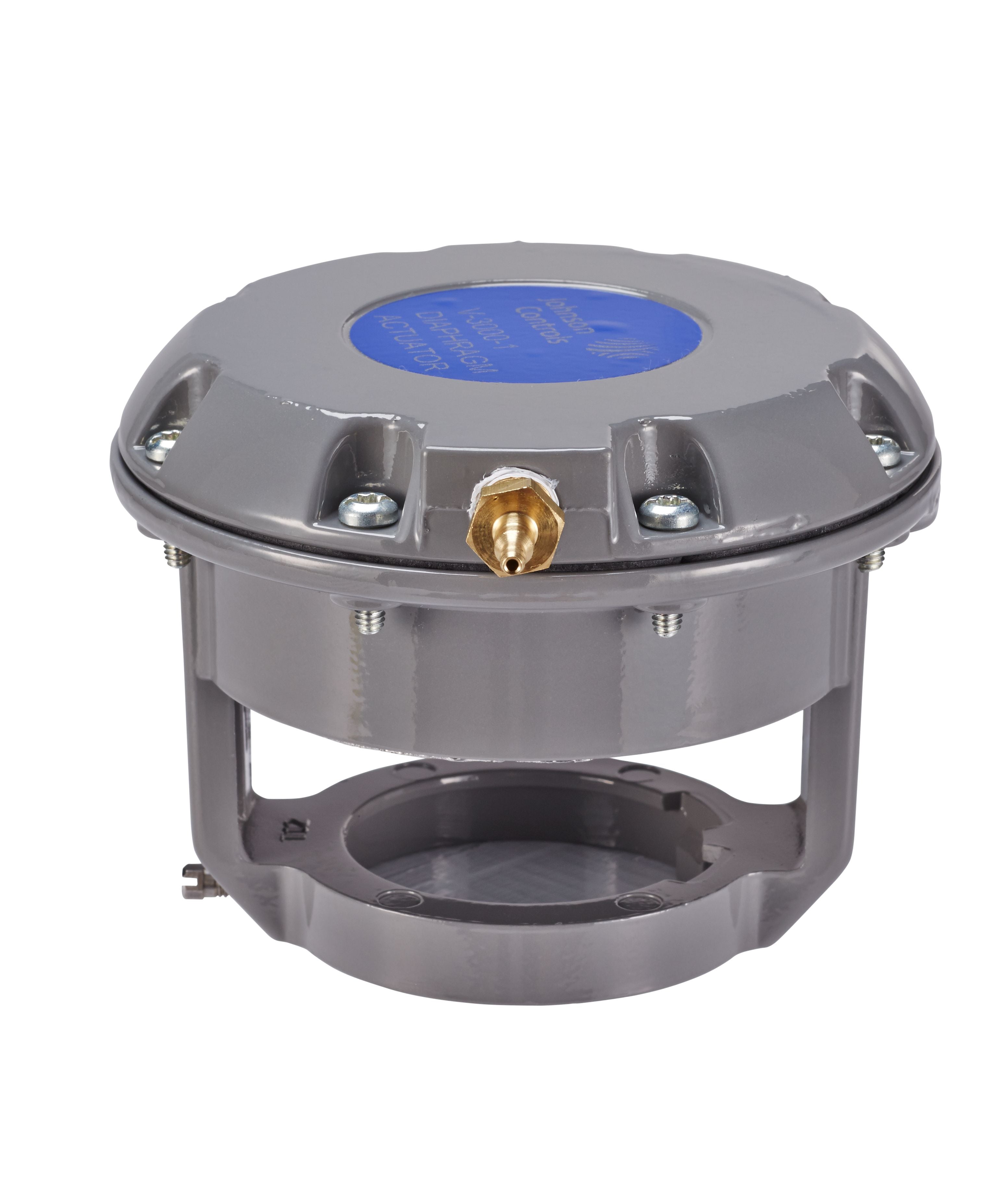

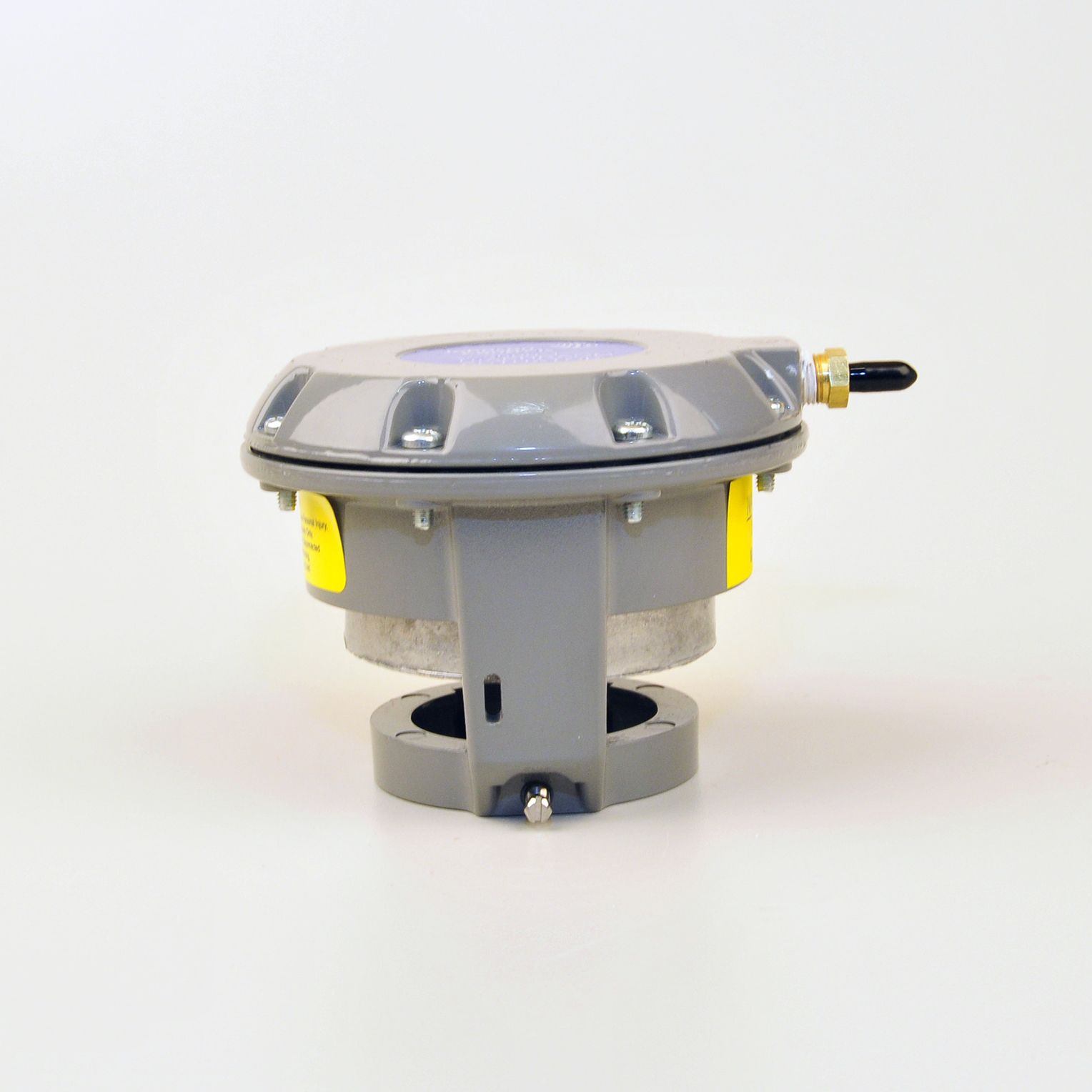

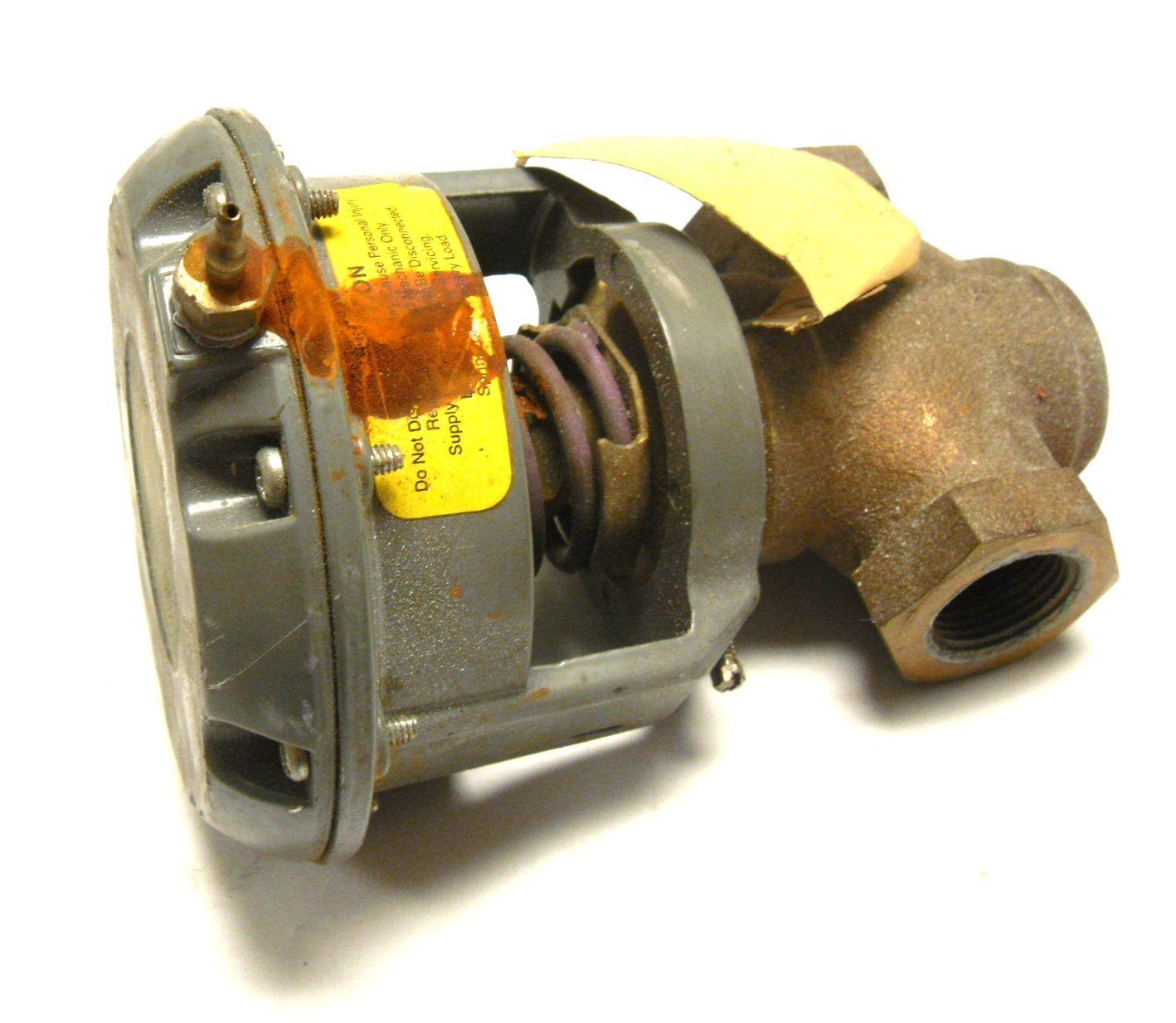

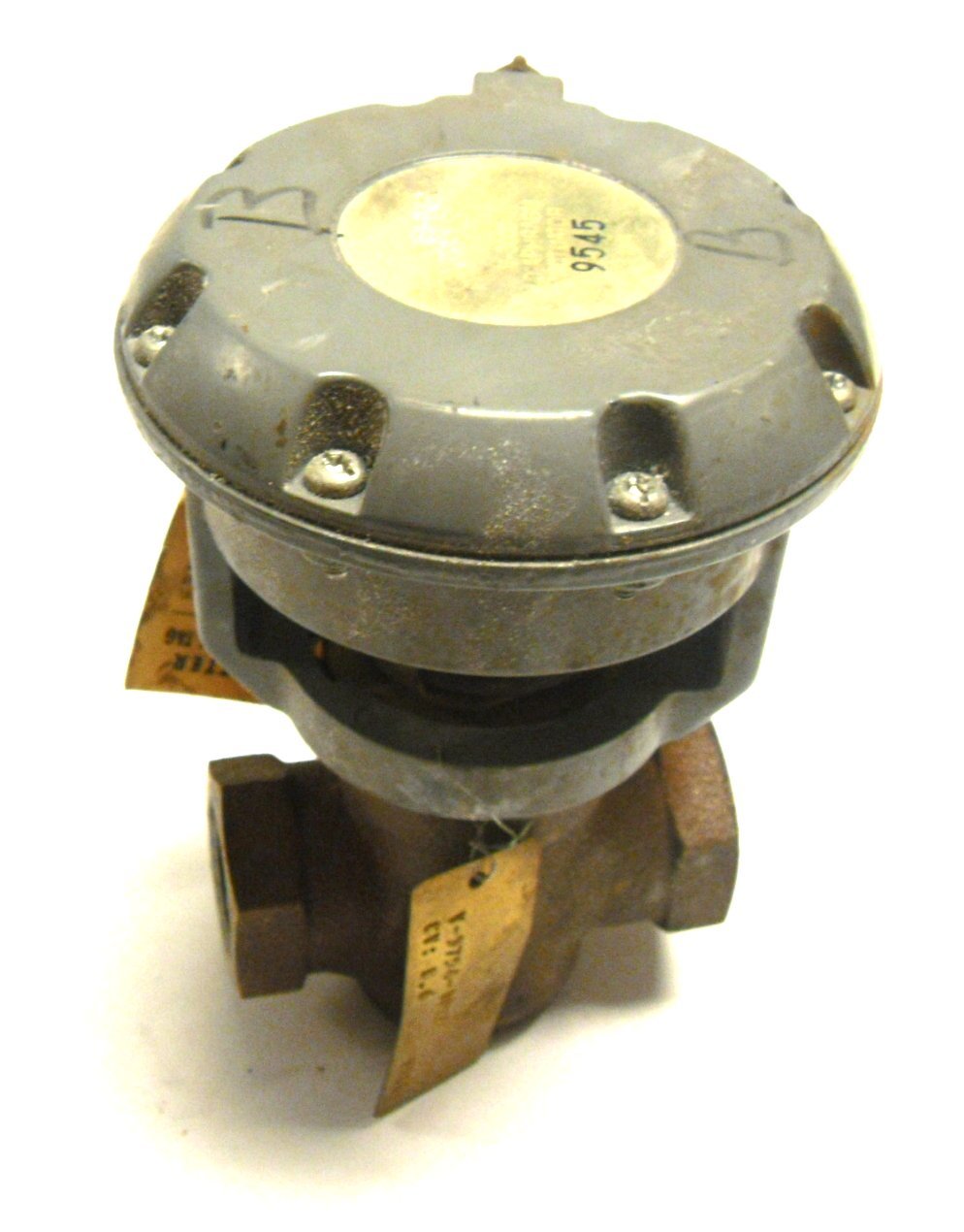

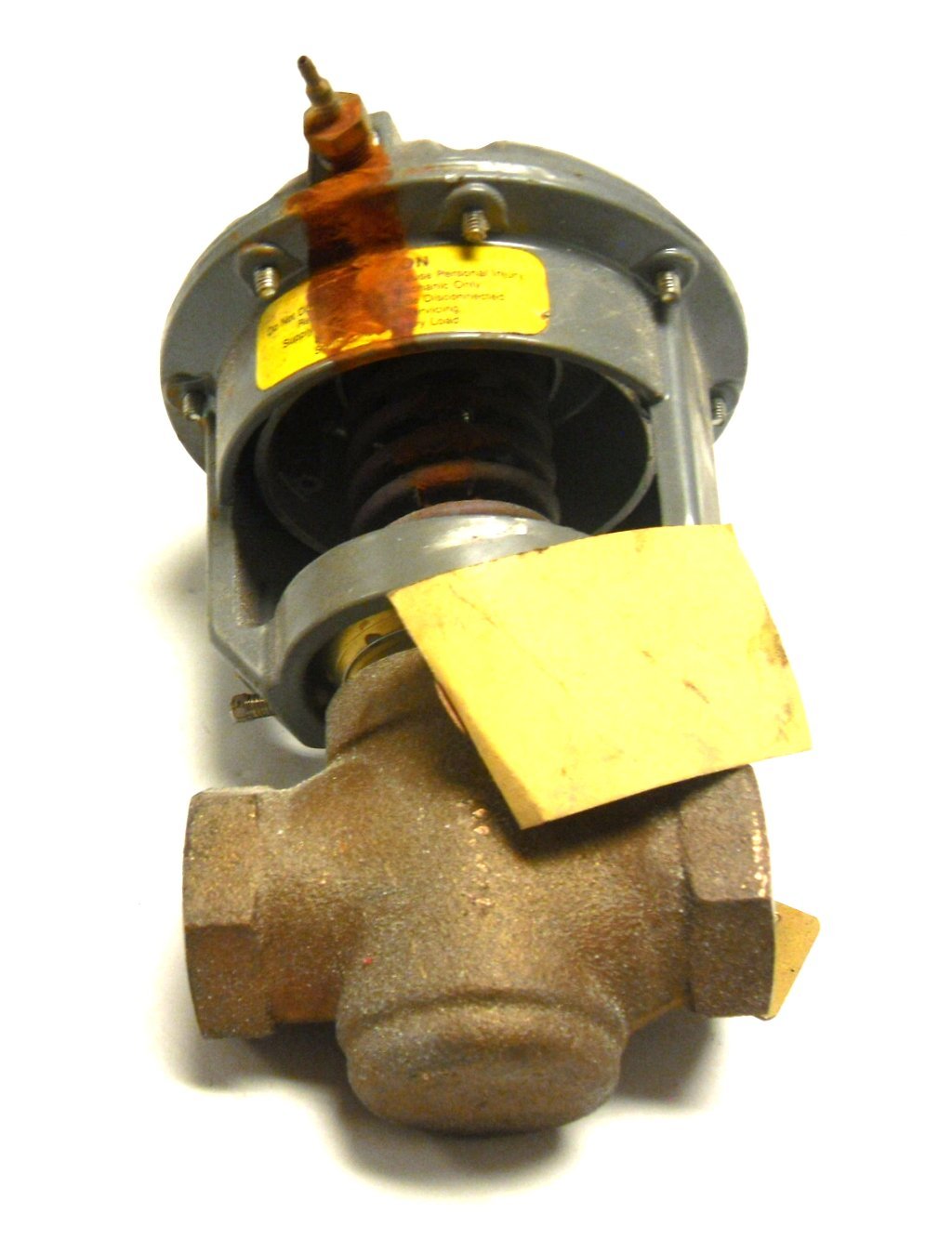

The Johnson Controls V-3000-1 Pneumatic Valve Actuator with 3 to 13 Spring positions steam or water valve modulating plugs in response to a pneumatic signal. It features a die-cast aluminum housing coated with a corrosion-resistant finish and can be easily field mounted to the valve bonnet with a single set screw. This pneumatic actuator is designed for industrial applications.
- Exposed yoke
- Die-cast aluminum housing with corrosion-resistant finish
- Easily field mounted with a single set screw
Product Highlights
This pneumatic valve actuator accurately controls the flow of steam, hot water, or cold water through coils and heat exchangers.
Product Information
Standard Information
-
Brand: JOHNSON CONTROLS
-
Manufacturer Part Number: V-3000-1
-
Country of Origin: United States
Technical Specifications
-
Material: Aluminum
-
Manufacturer: Johnson Controls Inc
-
Item model number: V-3000-1
-
Major Category: Hydronics/Pneumatics
-
Sub Category: Valves & Fittings
-
Product Type: Valve Actuators
-
Brand: Johnson Controls
-
Spring Range: 9-13#
-
Positive Positioner: N
-
Diaphragm Effective Area: 8 sq in
-
Model: Exposed
-
Max Control Pressure: 30 psig
-
Air Connection: 1/8"NPT barb fitting for 5/32" O.D polytubing
-
Ambient Operating Temperature Limits: -20 to 150F (-29 to 66C)
-
Max Storage Temperature: 150F
-
Operating PSI Range: 0-30
-
Nominal Spring Range: 3 to 13 psi
-
Stroke: 5/16 in
-
For Use With: V3000 Flare Valve
-
Max. Air Pressure: 30 psi
-
Housing: Die-Cast Aluminum
-
Media Temperature: 281 F Maximum
-
Style: Exposed
-
Mounting: V-3000: Set screw to VG-7000 valve bonnet
MP800: Threaded nut to VG-7000 valve bonnet
-
Application: Valve
-
Connection Size: 1/8 in
-
Connection: Barbed
-
Action: V-3000: Spring return up
MP800: Field reversible action
-
Connections: Barb for 1/4" or 1/8" OD poly tubing; 1/8" NPT
for brass fitting
-
Positioner: V-3000: Order separately V-9502-75 (and spring kit V-9502-6801)
MP800: Order separately V-9502-95 (and mounting kit MP8000-6002)
-
Diaphragm: V-3000: 4.5" (11.4 cm) diameter, 8 sq. in. (20 sq. cm) effective area
MP800: 8.7" (22.1 cm) diameter, 25 sq. in. (64 sq. cm) effective area
-
Operating Temperature: -20° to 150°F (-29° to 66°C)
-
Media Temperature Range: Maximum fluid temperature 338°F
(170°C), 100 psig (103 kPa) steam
-
Maximum Pressure: 25 psig (172 kPa)
-
Dimensions: V-3000: 3.5"H x 4.1"DIA (8.8 x 10.5 cm)
MP800: 10.7"H x 8.7"DIA (27.2 x 22.1 cm)
-
Warranty: 1 year
-
Spring Range Minimum: 3 psi
-
Spring Range Maximum: 13 psi
-
Compatible Valve Size: 1/2 in; 3/4 in; 1-1/2 in
-
Air Connection Size: 1/8 in
-
Air Connection Type: Barbed Hose
-
Control Pressure - Maximum: 30 psi
-
Return Action: Spring Return
-
Stem Material: Stainless Steel
-
Housing Material: Die Cast Aluminum
-
Diaphragm Material: Synthetic Rubber
-
Includes Mounting Kit: Valve Mounting Kit Included
-
Specific Valve Action: Spring Return Up
-
Includes Positioner: Positioner Not Included
-
Operating Temperature - Minimum: -20 °F
-
Operating Temperature - Maximum: 150 °F
-
Manufacturer Series: V-3000
-
Sub-brand: Johnson Controls
