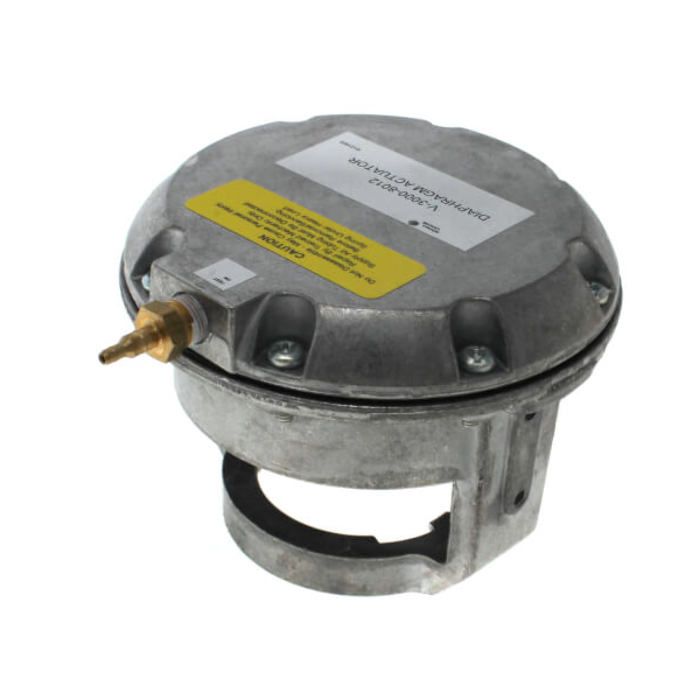

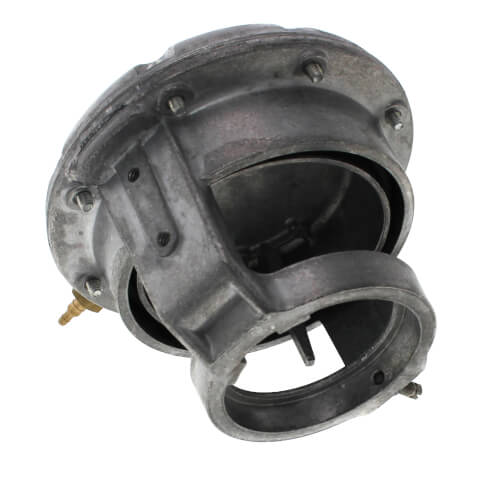

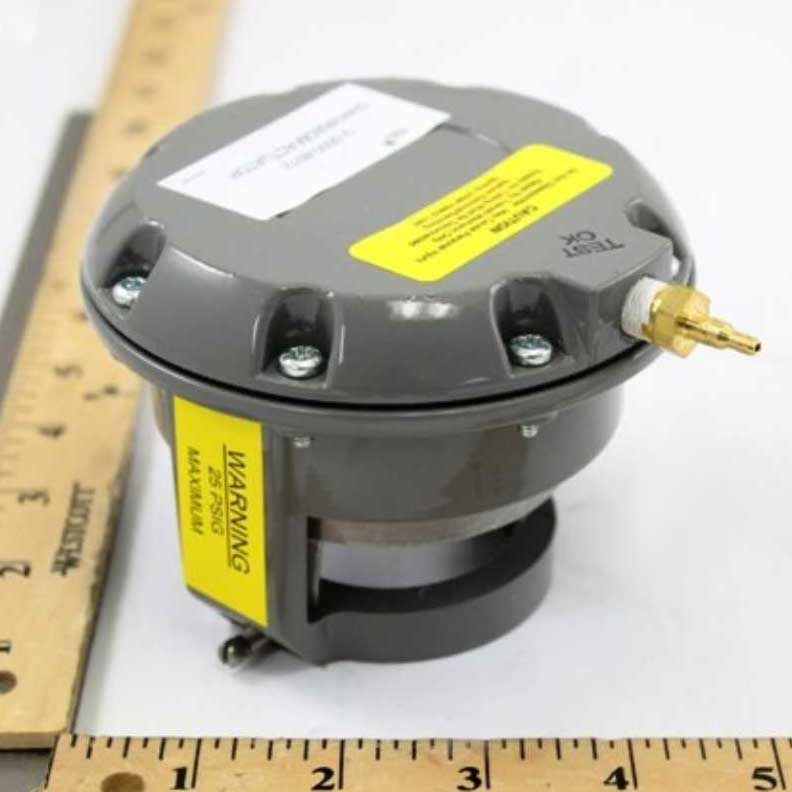

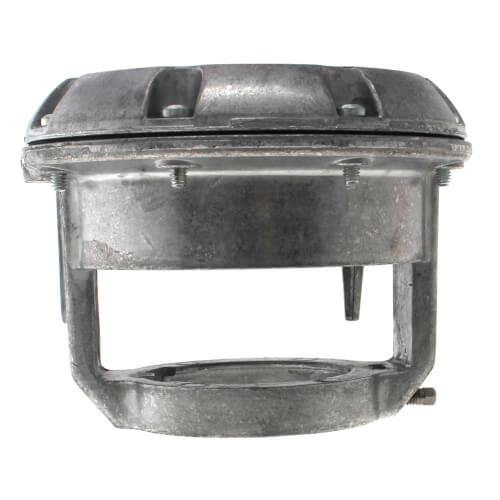

Johnson Controls V-3000-8012 Valve Actuator

Product Description

The Johnson Controls V-3000-8012 Valve Actuator is engineered to precisely control steam or water valve modulating plugs. This actuator reacts promptly to pneumatic signals from a controller. Designed with a robust die-cast aluminum housing, it ensures reliable operation.

• Compatible with various valve types
• Molded synthetic rubber diaphragm
• Durable die-cast aluminum housing

Product Highlights

The V-3000-8012 valve actuator offers consistent performance and durability, suitable for demanding environments. It features an exposed yoke design for easy maintenance and adjustments.

Product Information

Standard Information

• Type: Pneumatic Valve Actuator
• Brand: Johnson Controls

Technical Specifications

• MPN: V-3000-8012
• Maximum Pressure: 25 psi
• Stroke: 3/4 inch
• Connection Size: 1/4 or 5/32 O.D. barbed air
• Material: Die-cast aluminum
• Diaphragm: Molded synthetic rubber
• Actuator Type: Pneumatic
• Use Cases: Ball, butterfly, gate valves
