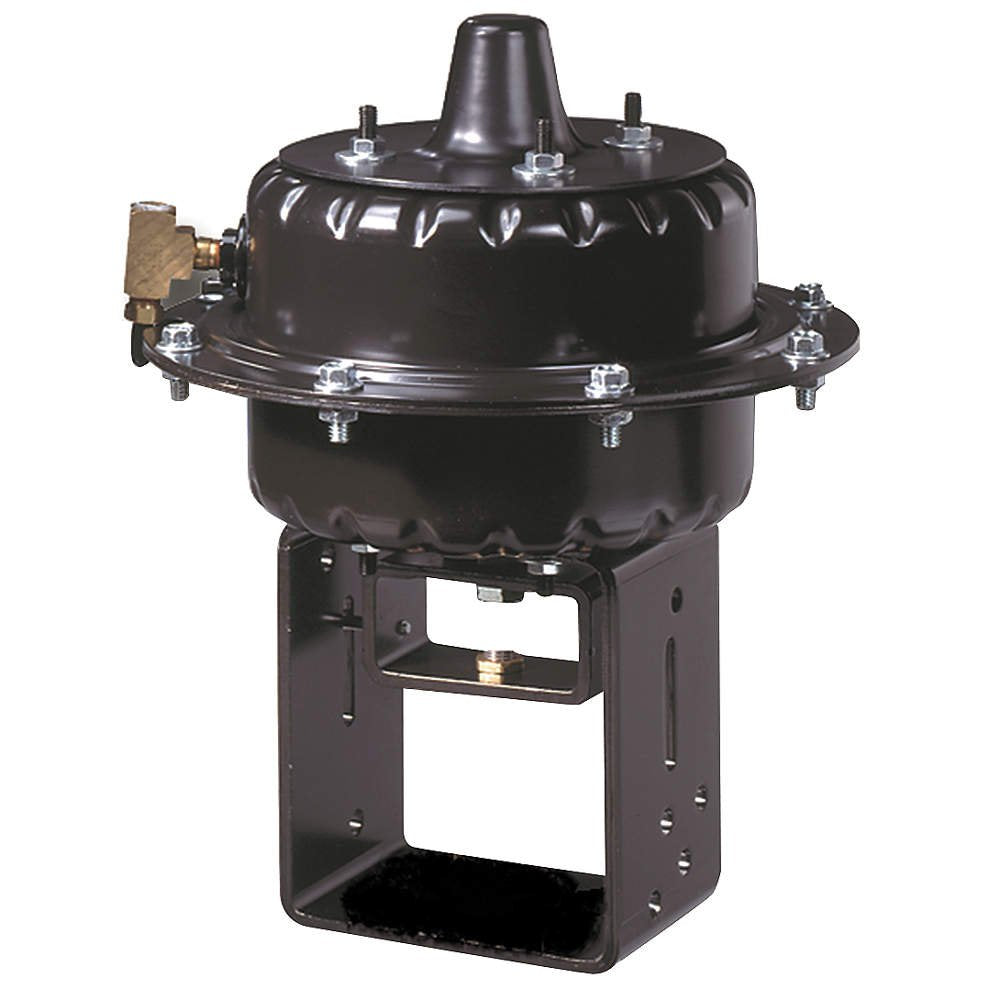

Johnson Controls MP822E001 MP8000 Series Pneumatic Valve Actuator Spring Return 25 Square Inch

Product Description

The Johnson Controls MP822E001 MP8000 Series Pneumatic Valve Actuator is engineered for precision positioning of HVAC control valves. This product, devoid of a mounting kit, utilizes a spring return mechanism to revert to its original position between 9 to 13 psig.

• Utilizes universal application design suitable for hot water, chilled water, and steam environments.
• Offer field-reversible action, configurable for either a spring-return-up or down position.
• Boasts a robust and corrosion-resistant housing guaranteeing extended durability.

Product Highlights

Each actuator includes a visual position indicator, aiding proper installation and maintenance.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: MP822E001

Technical Specifications

• Effective Area: 25 square inches
• Stroke Length: Half an inch
• Pressure Range: 9 to 13 psig
• Length: 9 7/32 inches
• Width: 9 7/32 inches
• Height: 11 inches
