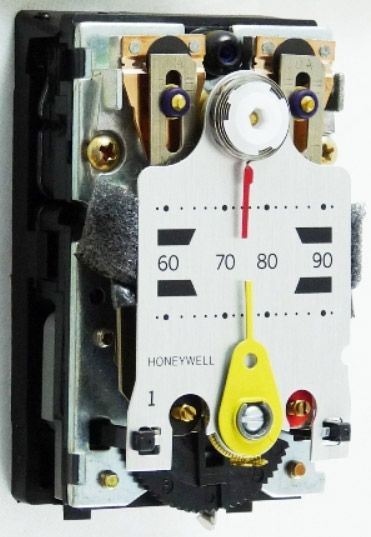

Honeywell TP972A2002 Pneumatic Thermostat 2 Pipe Single Temp 60-90F

Product Description

Efficiently control your environment with the Honeywell TP972A2002, a pneumatic thermostat that operates seamlessly between 60 and 90 degrees Fahrenheit. This device is ideal for balancing both heating and cooling systems in a two-pipe setup.

• Supports direct and reverse acting functions.
• Operational with 18 psi for heating and 13 psi for cooling.
• Designed for both commercial and residential installations.

Product Highlights

The Honeywell TP972A2002 excels in performance, offering sturdy construction and reliable temperature control. It is suitable for operations that require a throttling range of 2 to 10 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• Model: TP972A

Technical Specifications

• MPN: TP972A2002
• Temperature Range: 60 to 90F
• Supply Air Pressure: 18 psi (Heating), 13 psi (Cooling)
• Dimensions: 3-1/4 in. high x 2 in. wide x 1-5/8 in. deep
• Throttling Range: 2F to 10F
