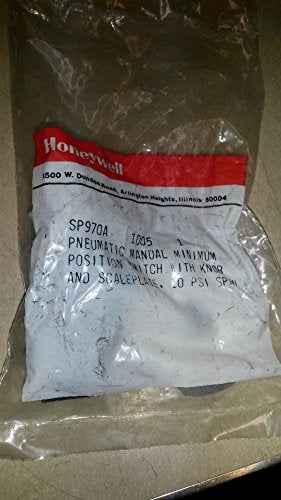

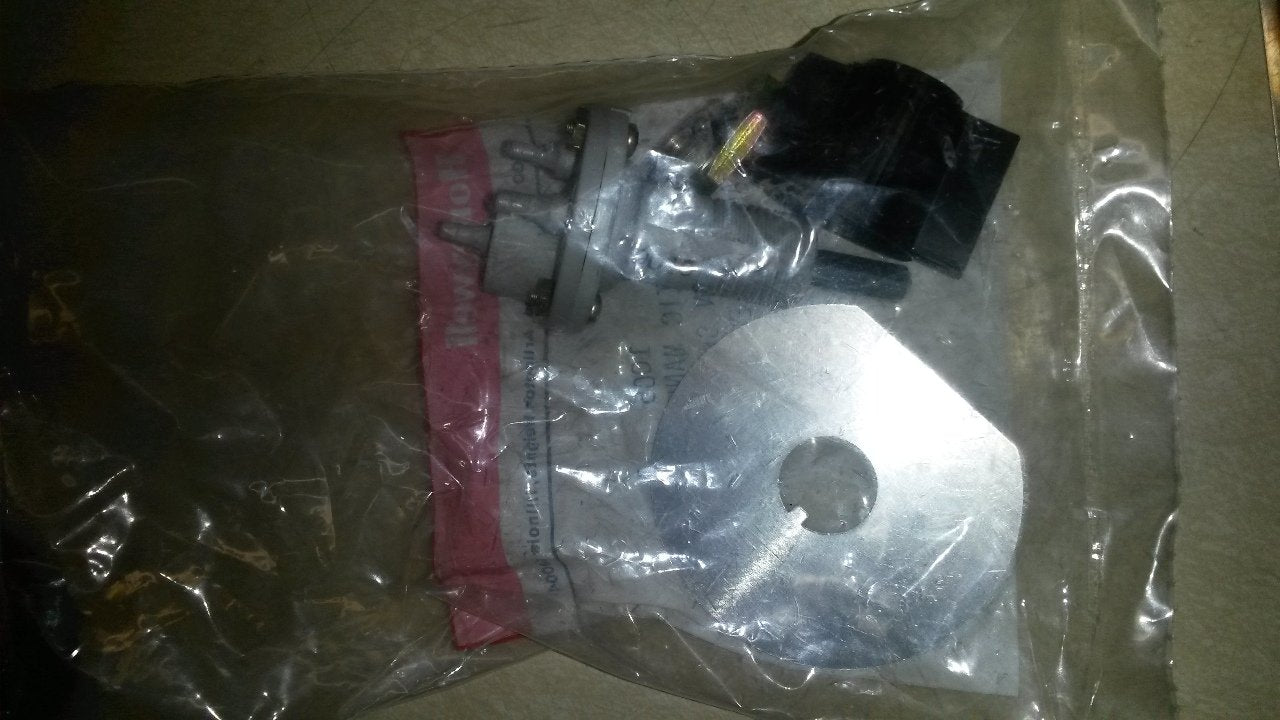

Honeywell SP970A1005 Pneumatic Pressure Switch 3 to 13 psi Output Wall Mount

Product Description

The Honeywell SP970A1005 is a pneumatic manual or minimum position switch designed for reliable performance in HVAC systems. This switch allows manual positioning of damper actuators and pneumatic controllers with output pressures ranging from three to thirteen psi.

• Robust design suitable for panel or wall mounting.
• Flexible output span for varying HVAC needs.
• Compatible with a wide range of pneumatic systems.

Product Highlights

This pneumatically operated switch features adaptable configuration options, ensuring optimal performance across multiple pressures. Its durability and straightforward mounting capabilities make it ideal for professional installations.

Product Information

Standard Information

• Brand: Honeywell
• MPN: SP970A1005
• Category: Pressure Switches

Technical Specifications

• Output Pressure Range: 3 to 13 psi
• Switch Type: Three-port pneumatic
• Operating Humidity Range: 5 to 95% RH
• Temperature Range: 0 F to 140 F
• Dimensions: 1.5 x 3 inches (depth)
• Mounting Type: Wall or panel mount
• Airflow Usage: 0.022 scfm
• Maximum Safe Operating Pressure: 30 psi
