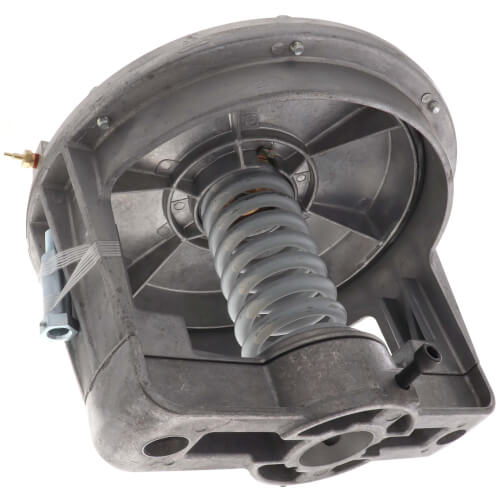

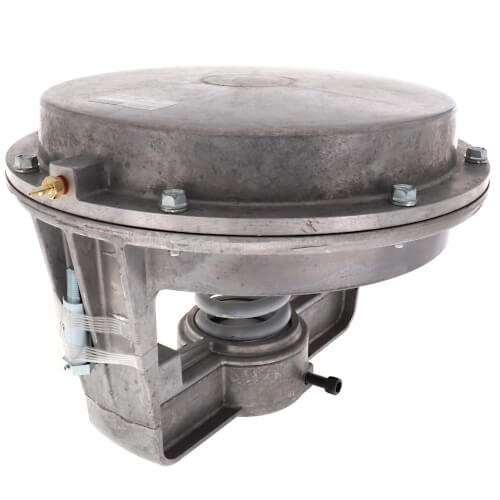

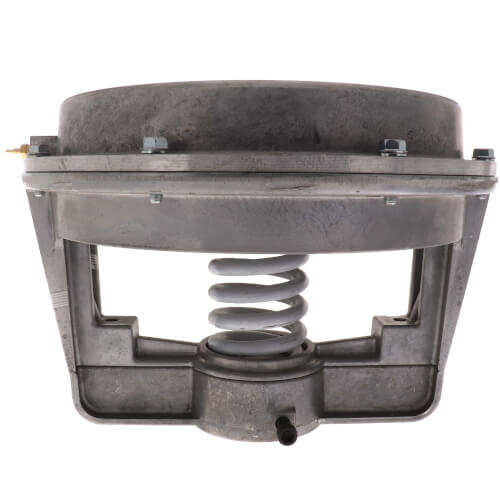

Honeywell MP953C1489 Pneumatic Coil Valve Actuator High Force 1-1/2 in. Stroke

Product Description

The Honeywell MP953C1489 Pneumatic Coil Valve Actuator is designed for high-force applications in industrial automation and control systems. Featuring a valve actuator with a stroke of 1-1/2 inches, this actuator operates with a pressure range of 4 to 11 PSI. The device is compact and constructed with durable, corrosion-resistant aluminum housing.

• Pneumatic 4 to 11 PSI direct-acting actuator
• 13-inch diaphragm for high force
• 1-1/2 inch stroke

Product Highlights

The Honeywell MP953C1489 Actuator provides precise control in HVAC systems, ensuring enhanced operational efficiency and reduced maintenance needs. Suitable for V5011 and V5013 valves, it offers proportional control of steam or hot and cold liquids.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MP953C1489

Technical Specifications

• Actuator Type: Valve
• Actuator Force: High
• Action: Direct Acting
• Stroke: 1-1/2 inches
• Maximum Safe Operating Pressure: 25 PSI
• Temperature Range: 0°F to 140°F
• Fail Safe Mode: Spring Return
• Air Connections: Dual barbed fitting for 5/32 inch and 1/4 inch O.D. plastic tubing
• Operating Humidity Range: 5 to 95% RH
