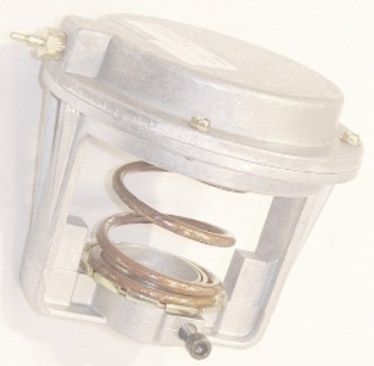

Honeywell MP953C1471 Pneumatic Valve Actuator 2 to 7 PSI 1-1/2 Travel

Product Description

The Honeywell MP953C1471 Pneumatic Valve Actuator is a high-performance solution designed to control steam or hot and cold liquids in HVAC systems. This model offers precise control with a spring range of 2 to 7 psi and a stroke length of 1-1/2 inches.

• Direct-acting valve actuator
• Spring range: 2 to 7 psi
• 1-1/2 inch stroke length

Product Highlights

This actuator's rolling diaphragm ensures long life and low hysteresis, while the intuitive slide lock feature allows for easy engagement with the valve stem. It is pressure rated to 25 psi and can operate within a temperature range of 0°F to 140°F.

Product Information

Standard Information

• Brand: Honeywell
• Model: MP953C
• MPN: MP953C1471

Technical Specifications

• Spring Range: 2 to 7 psi
• Stroke: 1-1/2 inches
• Air Connection: Dual barbed fitting for 5/32 in. OD and 1/4 in. OD plastic tubing
• Max Pressure: 25 psi
• Operating Temperature: 0°F to 140°F
• Weight: 22.64 lbs
• Length: 14.7 inches
• Width: 15.85 inches
• Height: 15.7 inches
