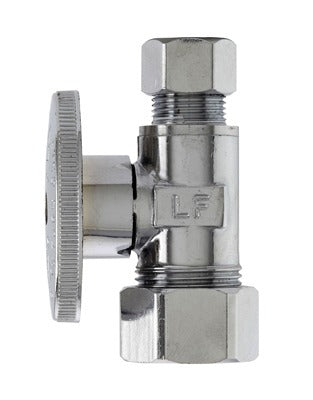

Plumb Shop Div Brasscraft MP2068PCLF Supply Stop Valve

Product Description

The PLUMB SHOP DIV BRASSCRAFT MP2068PCLF is a straight supply stop valve designed for residential water supply applications. It features a 5/8 inches OD compression inlet and a 3/8 inches OD compression outlet, making it a standard configuration for connecting copper supply lines to fixtures such as faucets and toilets. The valve is chrome plated for corrosion resistance and operates with a 1/4 turn ball mechanism for fast, reliable shutoff. This part is lead free, meeting current potable water compliance requirements. Licensed plumbers and experienced DIYers install this valve as part of routine fixture rough-in or replacement work.

This stop valve is suited for residential plumbing installations where a 1/2 inches nominal copper supply line transitions to a 3/8 inches OD compression outlet serving a fixture supply tube. Typical applications include under-sink shutoffs for lavatory faucets, kitchen faucets, and toilet fill valves. The straight body configuration is used when the supply stub-out comes from the wall or floor in a direct line to the fixture connection point.

Key Features

• 5/8 inches OD compression inlet fits 1/2 inches nominal copper pipe
• 3/8 inches OD compression outlet for standard fixture supply tubes
• 1/4 turn ball valve operation for quick shutoff
• Chrome finish for corrosion resistance and finished appearance
• Lead free construction meets NSF and Safe Drinking Water Act requirements
• Straight body design for direct inline supply line connections

Compatibility

Designed as an OEM-style replacement for residential straight supply stop valves on 1/2 inches nominal copper pipe with 3/8 inches OD compression fixture connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified technician in accordance with local plumbing codes. Shut off the main water supply and relieve line pressure before removing an existing valve or making new connections. Compression fittings require proper seating of the ferrule and should not be overtightened. Verify that all connections are leak free before restoring water service.
