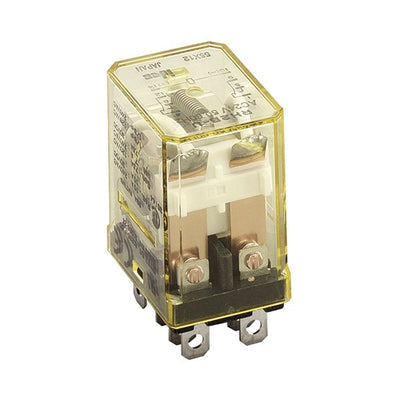

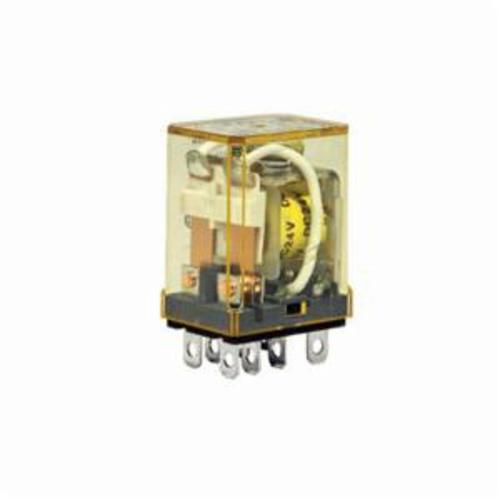

IDEC RH2B-UDC24V Blade Relay DPDT 24VDC 10A

Product Description

The IDEC RH2B-UDC24V is a high-performance, plug-in electromechanical relay designed for industrial applications. This compact relay offers a double pole, double throw (DPDT) configuration and operates with a 24VDC coil.

• DPDT contact form ensures versatile switching capabilities.
• Designed to withstand harsh industrial environments from -25 to 70 degrees Celsius.
• Features a robust dielectric strength of 2000VAC, enhancing operational safety.

Product Highlights

This relay is ideal for use in control panels, automation systems, and HVAC equipment requiring reliable switching and performance. It supports electrical and mechanical operations of 1800 and 18000 operations per hour, respectively.

Product Information

Standard Information

• Brand: IDEC
• Model: RH2B-UDC24V
• Type: Electromechanical Relay

Technical Specifications

• Contact Configuration: DPDT
• Coil Voltage: 24VDC
• Amperage Rating: 10A
• Frequency: 50/60 Hz
• Temperature Operating Range: -25 to 70 degrees Celsius
• Terminal Type: Plug-In/Blade
• Dimensions: 35.6 mm H x 27.5 mm W x 21 mm D
• Standards/Approvals: cURus Listed, CSA Certified, CE Marked, TUV Certified
