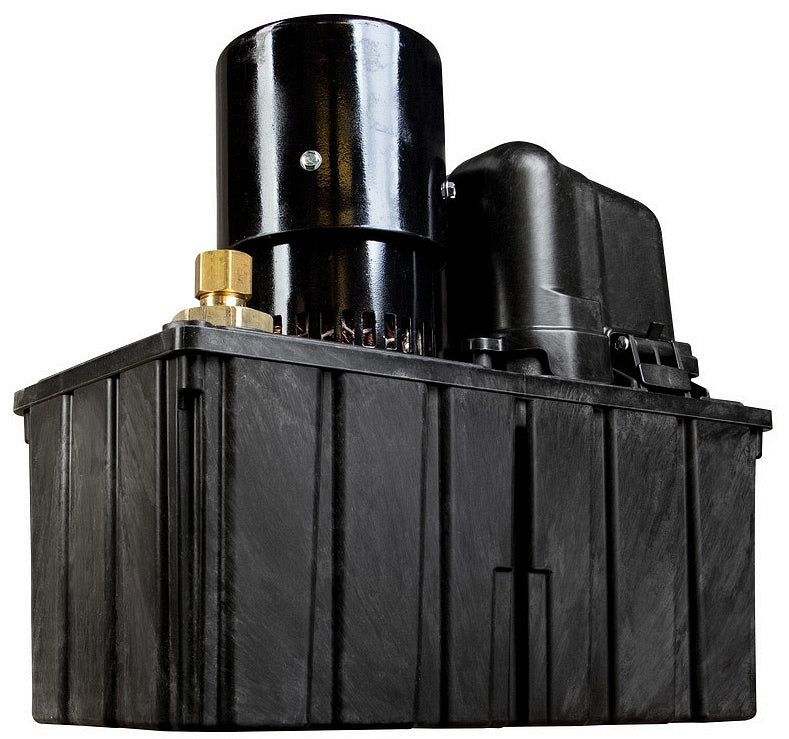

Platsky 553160101 Vertical Condensate Lift Pump 115V

Product Description

The PLATSKY 553160101 is a vertical condensate lift pump designed to remove condensate from HVAC equipment when gravity drainage is not possible or practical. Operating at 115 volts and 60 Hz, this unit handles condensate generated by air handlers, fan coils, mini-splits, and other cooling or high-efficiency heating equipment. The pump forces collected condensate upward or horizontally to a suitable drain point, protecting equipment from overflow-related damage. Licensed HVAC technicians and installation crews typically specify this pump for applications where the equipment drain pan sits below the nearest drain line.

This condensate lift pump is suited for residential and light commercial installations where standard gravity drainage is not feasible. Common applications include finished basements, attic installations, and mechanical rooms where the unit sits below or level with available drain lines. The HT-VCL-60-P designation indicates a vertical pump configuration intended for use with standard HVAC condensate volumes in typical split-system or packaged equipment installs.

Key Features

• Vertical condensate lift design for installations without gravity drain access
• Operates at 115 volts, 60 Hz — compatible with standard North American electrical service
• Compact footprint at 15.12 inches x 8.25 inches x 12.56 inches for tight mechanical spaces
• Handles condensate from air handlers, fan coils, mini-splits, and high-efficiency furnaces
• Manufacturer part number HT-VCL-60-P for direct cross-reference ordering

Compatibility

Designed as an OEM-style condensate lift pump for residential and light commercial HVAC systems requiring forced condensate removal where gravity drainage is unavailable.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer guidelines. Disconnect power to the HVAC system before connecting or servicing the pump. Ensure the inlet tubing is sized and routed to allow complete drainage from the equipment drain pan without air locks. Verify the discharge line rise and run are within the pump rated lift capacity before completing the installation.

Technical Specifications

• Voltage: 115 volts
• Frequency: 60 Hz
• Length: 15.12 inches
• Width: 8.25 inches
• Height: 12.56 inches
• Weight: 14.5 pounds
• UPC: 01012100349

Standard Information

• Brand: PLATSKY
• Manufacturer Part Number: 553160101
