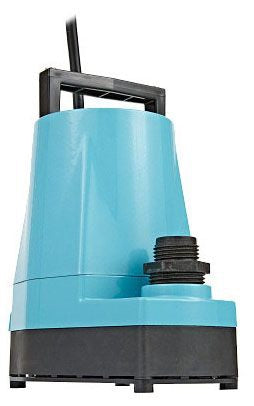

Platsky 505025 Condensate Pump 115V 1/6 Hp

Product Description

The PLATSKY 505025 is a 1/6 HP condensate removal pump rated for 115 volts, designed to handle condensate drainage in HVAC systems where gravity drainage is not practical. This pump moves collected condensate water away from air handlers, furnaces, and cooling coils, discharging it to a suitable drain point. Weighing 10.25 pounds, it is a self-contained unit suited for residential and light commercial installations. Licensed HVAC technicians and service professionals are the primary installers. The 5-MSP designation indicates this is part of PLATSKY's mini split pump product line, making it a natural fit for ductless and split-system applications.

This pump is commonly installed in applications where the indoor unit or air handler is located below or far from a gravity drain. Typical scenarios include ceiling-mounted air handlers, attic installations, and wall-mounted mini split indoor heads. It operates on standard 115-volt single-phase power, which is readily available in most residential and light commercial mechanical spaces. Installation is straightforward for qualified technicians familiar with low-voltage drain pump wiring and condensate system requirements.

Key Features

• 1/6 HP motor provides reliable condensate lift capacity
• 115-volt single-phase operation compatible with standard residential power
• Compact, self-contained design suited for tight mechanical spaces
• Applicable to mini split and ducted HVAC condensate removal
• Unit weight of 10.25 pounds for manageable single-technician handling

Compatibility

Designed as an OEM-style condensate removal pump for residential and light commercial HVAC systems requiring 115-volt condensate lift solutions, including mini split and ducted air handler installations.

Installation Notes

Installation should be performed by a licensed HVAC technician following applicable mechanical codes. Disconnect and lock out all power to the HVAC system before connecting or servicing the pump. Ensure the condensate discharge line is routed to an approved drain point and is not kinked or blocked. Do not operate the pump without water present, and verify float switch operation before returning the system to service.

Technical Specifications

• Voltage: 115 volts
• Motor Horsepower: 1/6 HP
• Weight: 10.25 pounds
• UPC: 01012105025

Standard Information

• Brand: PLATSKY
• Manufacturer Part Number: 505025
