Platinum Tools 202048J ezex48 ezex-rj45 cat6a connector (100/jar)

Product Description

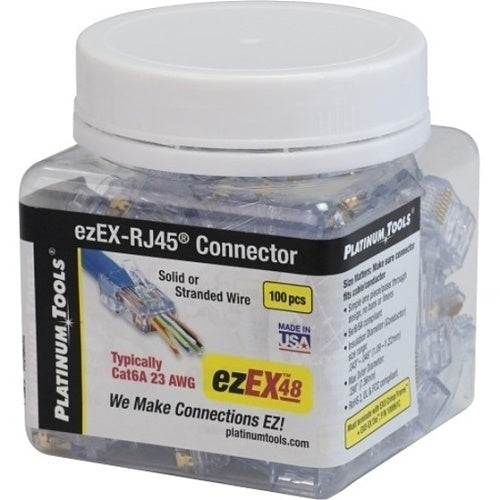

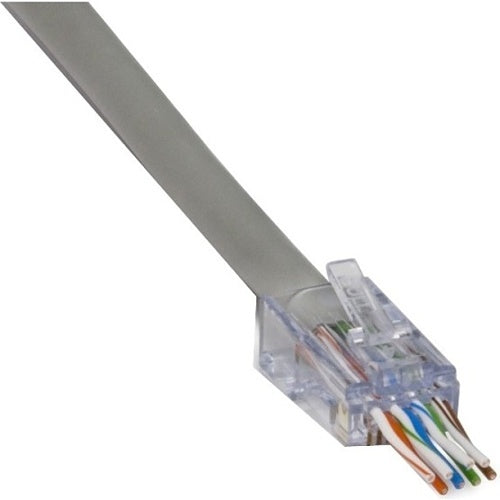

The Platinum Tools 202048J ezEX48 ezEX-RJ45 connectors terminate larger diameter twisted-pair cables with solid or stranded conductors, sizes from 0.043" to 0.048" and max outer diameter 0.290". Rated up to 10 Gigabit, they feature a simple one piece/pass through design with an integrated Hi-Lo stagger load bar for verifying wiring sequence. Supplied 100 per jar.

• Terminates network cables with ease
• Gold plated contact mating area for enhanced durability
• Insulation Diameter (Conductor) Size range: 0.043" – 0.048" (1.09 –1.22mm)

Product Highlights

The Platinum Tools ezEX48 connectors are ideal for Cat6A cabling, supporting PoE/PoE+ and data applications. They simplify termination with a pass-through design and integrated Hi-Lo stagger.

Product Information

Standard Information

• Brand: Platinum Tools
• Manufacturer Part Number: 202048J
• Country of Origin: USA

Technical Specifications

• Brand Name: Platinum Tools
• Manufacturer: Platinum Tools, Inc
• Product Line: ezEX48
• Product Name: ezEX48 - ezEX-RJ45 CAT6A Connector
• Product Type: Network Connector
• TAA Compliant: yes
• Connector Type: RJ-45 Network Male
• ADI Part Number: TS-202048J
• Contact Plating: Gold
• Connector Details: 1 x Rj-45 Network - Male
• Packaged Quantity: 100
• Network Category Type: CAT6A
• Environmentally Friendly: Yes
• Manufacturer Part Number: 202048J
• Environmental Certification: ROHS
• Packing: Jar
• Features: PoE,PoE+,Stranded
• Type: Connectors
• Applications: Cable Installation
• Contact Material: Phosphor Bronze
• Insulation Material: Cross-Linked Polyethylene
• Terminal: Modular Plug
• Temperature Rating: -40C to 85C
• Number of Items: 1
• Connector Gender: Male
• UPC: 849160008521
• Item model number: 202048J
• Hi-Lo stagger: Isolates each conductor for higher performance
• Design: Simple one piece/pass through design, no bars or liners
• Insulation Diameter (Conductor) Size range: .043” – .048” (1.09 –1.22mm)
• Max outer diameter: .290” (7.36mm)
• Contacts: 50 micron gold plated contacts
• Wire: Solid or Stranded 24-22 AWG
• Compliance: TIA, TAA, RoHS, UL & FCC compliant
• Usage: Typically used with Cat6A & Lg Cat6
• Category: CATEGORY 6A
• Number of Ports: 1
• UNSPSC Code: 39121444
