Platinum Tools 202010J EZ-RJ45 CAT6 Connectors 100-Pack

Product Description

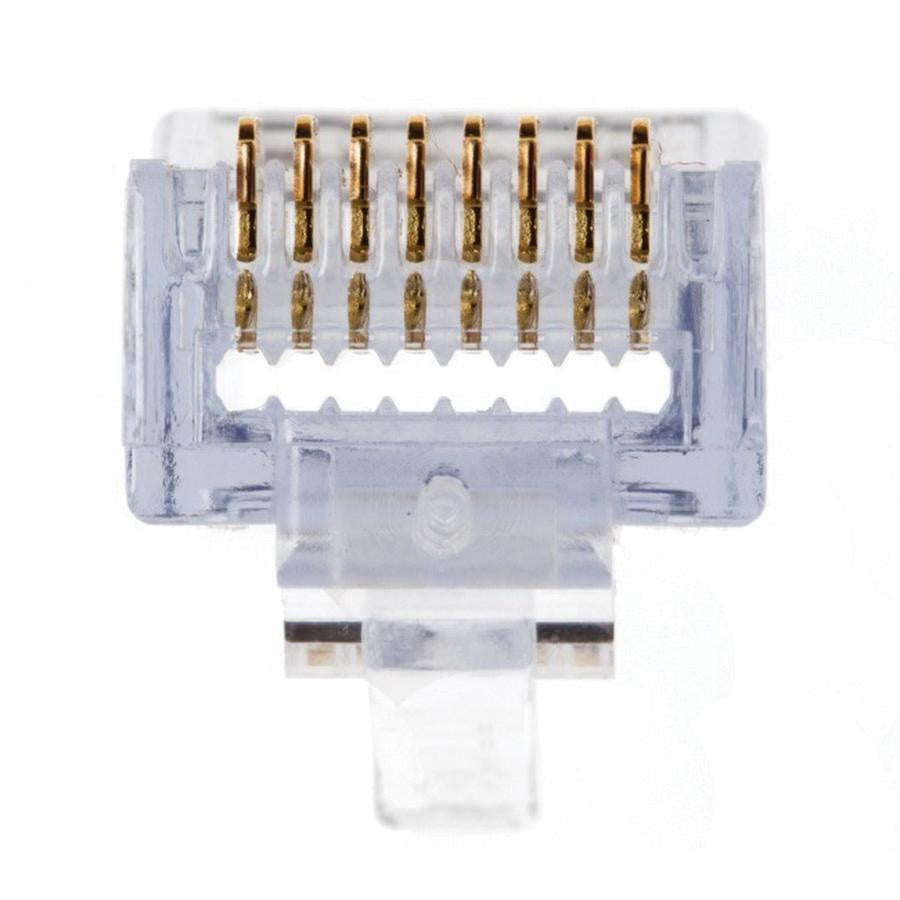

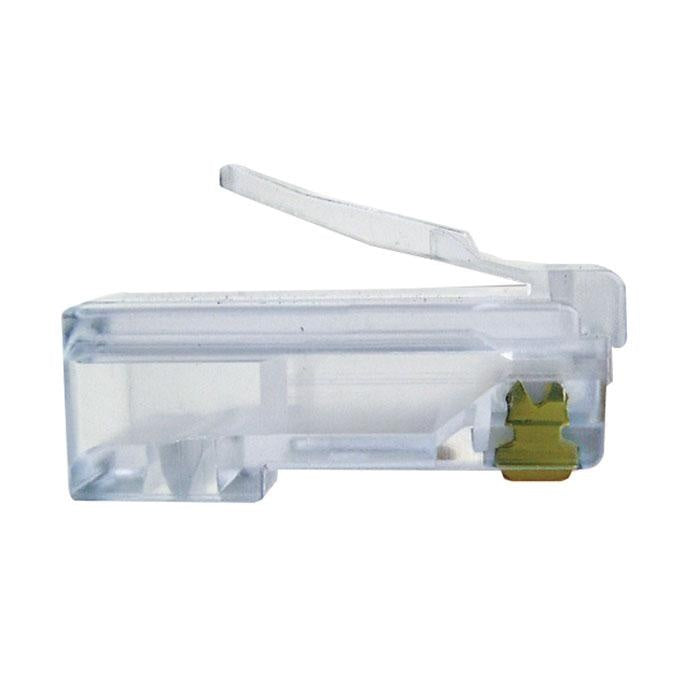

The Platinum Tools 202010J EZ-RJ45 CAT6 Connector simplifies twisted pair terminations by allowing wires to be inserted through the connector and out the front for easy verification of the wiring order. It optimizes electrical performance by pulling the connector down over the cable jacket. These connectors are for use in Cat6 compliant data networks and work with solid or stranded wire.

• Simplifies twisted pair terminations
• Allows wires to be inserted through the connector for easy verification
• Optimizes electrical performance

Product Highlights

The EZ-RJ45 CAT6 connector simplifies twisted pair terminations, allowing easy wire verification and optimized electrical performance.

Product Information

Standard Information

• Brand: Platinum Tools
• Manufacturer Part Number: 202010J
• Country of Origin: USA

Technical Specifications

• Brand Name: Platinum Tools
• Manufacturer Part Number: 202010J
• Product Line: EZ-RJ45
• Product Name: EZ-RJ45 CAT6 Connectors. 100/Jar
• Product Type: Network Connector
• Product Model: 202010J
• TAA Compliant: yes
• Contact Plating: Gold
• Connector Details: 1 x RJ-45 Network Male
• Packaged Quantity: 100
• Network Category Type: CAT6
• Environmentally Friendly: Yes
• Manufacturer: Platinum Tools, Inc
• Environmental Certification: RoHS 3
• Packing: Jar
• Shielding: No
• Connector Type: RJ-45 Network Male
• Max Insulation Diameter (Conductors): 0.040" (1.016mm)
• Cable Size: 24-23 AWG
• Number of Positions: 8
• Type: EZ-RJ45
• Cable Type: Category 6
• Applications: For use in Data Network
• Mounting Type: Cable
• Temperature Rating: 0 - 50 degrees C
• Energy Star Flag: No
• Country Of Origin: United States of America
• Item Name: Connector
• Standards: UL Listed, FCC Certified, TAA Compliant, RoHS Compliant
• Termination Type: RJ45
• Supported Cable Diameter: 0.26" / 6.6 mm
• Cable Types Supported: Stranded, Solid
• Compliance: RoHS, UL, FCC
• Flame Resistance Rating: No
• Contact Finish: Gold-Plated
• For Cable Type: Cat 6
• Shielded/Unshielded: Unshielded
• Wire Type: Solid, Stranded
• Max cable OD: 0.275 in (6.09 mm)
• AWG conductor: 24 to 23
• Angle: straight Degree(s)
• Primary Type: RJ45
• Termination: Crimp
