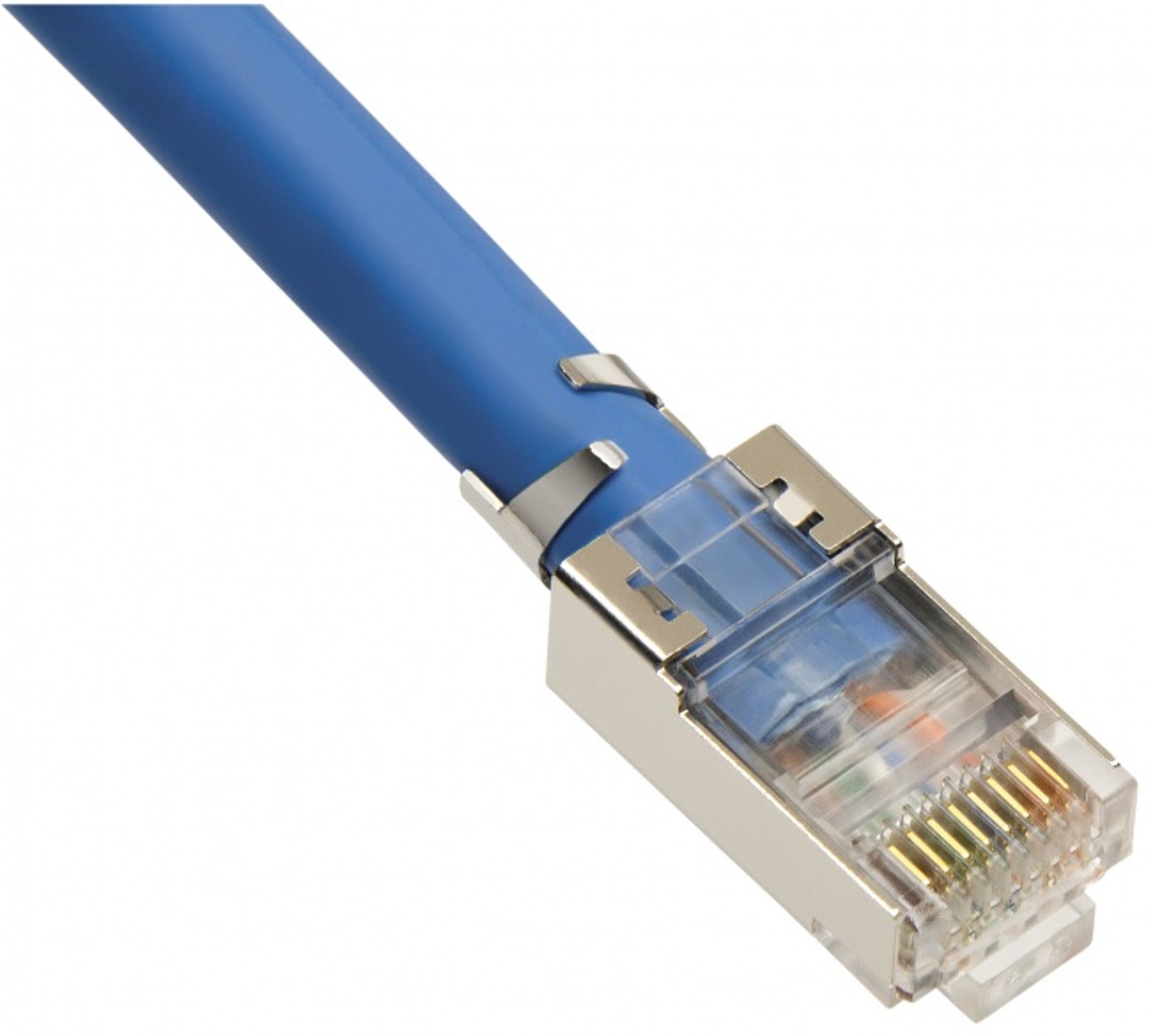

Platinum Tools 106191 RJ45 CAT6A 10Gig Shielded Connector with Liner, Solid 3-Pong, 25-Pack, Bag

Product Description

Platinum Tools 106191 is an RJ45 CAT6A 10Gig Shielded Connector with liner designed for high-performance networking. This connector works well with larger cables, including CAT6e, CAT6A, and CAT7. It is crucial to use the right connector and crimp tool for optimal performance. The Platinum Tools CAT6A/10Gig termination system meets required standards and exceeds them. The connector is compatible specifically with Tele-TitanXg and Tele-TitanXg 2.0 Crimp Tools.

• Ideal for network cable applications
• Gold plating enhances signal output
• Designed for both shielded and unshielded cabling

Product Highlights

This connector is built to handle the demands of today’s high-bandwidth streaming applications. It ensures reliable connections for data, audio, and video over network cables.

Product Information

Standard Information

• Brand: Platinum Tools
• MPN: 106191

Technical Specifications

• Max cable OD: 8.5 mm
• Max conductor OD: 1.35 mm
• Individual conductor OD range: 0.042 - 0.053 inches
• Wire gauge range: 24-22 AWG
• Contact plating: Gold
• Number of contacts: 8
• Packaged quantity: 25
• Connector type: RJ-45 Network Male
