Plastics 901-ZRI-PVC-CP Innovator Lift & Turn Bath Waste Half Kit

Product Description

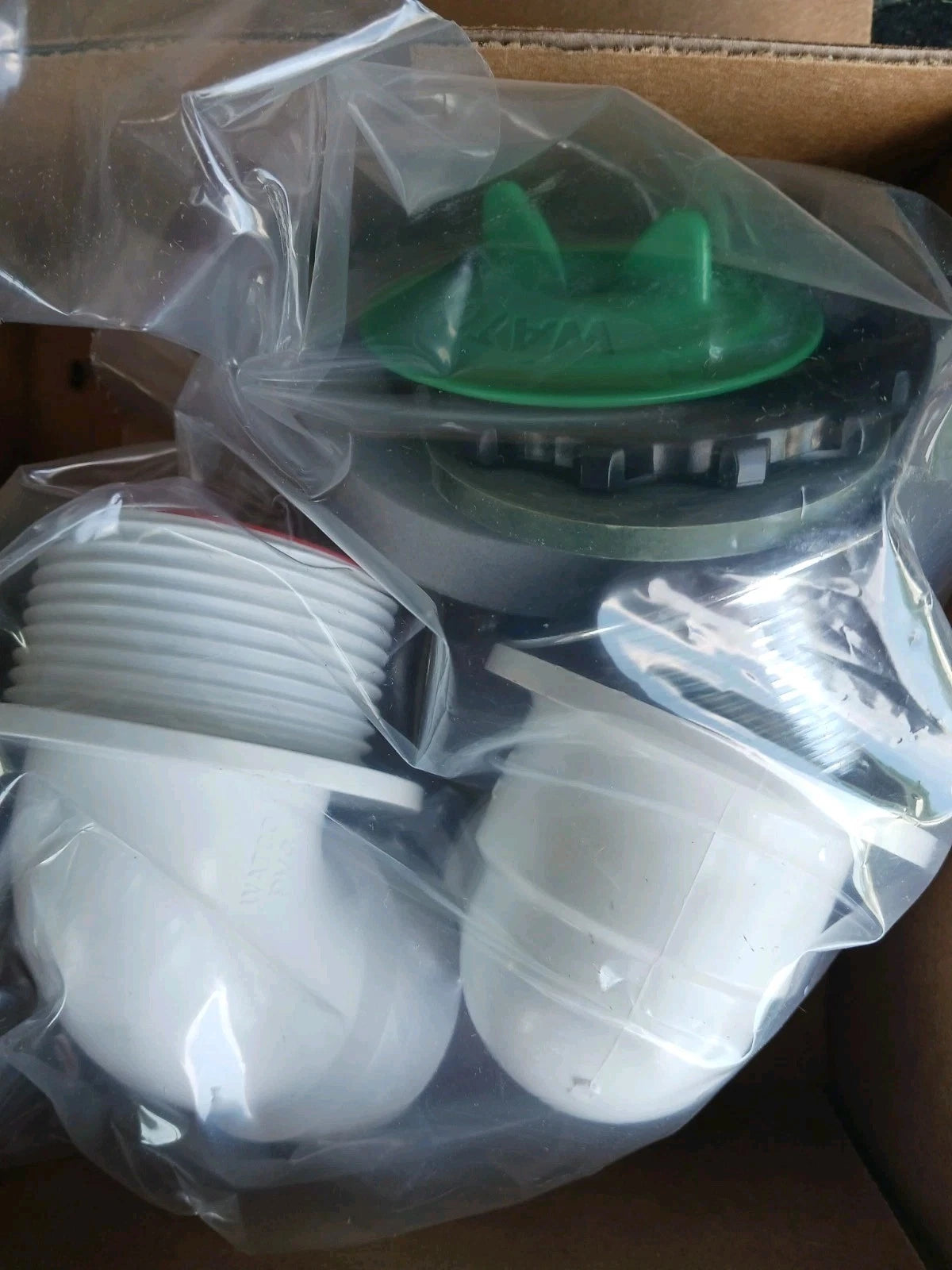

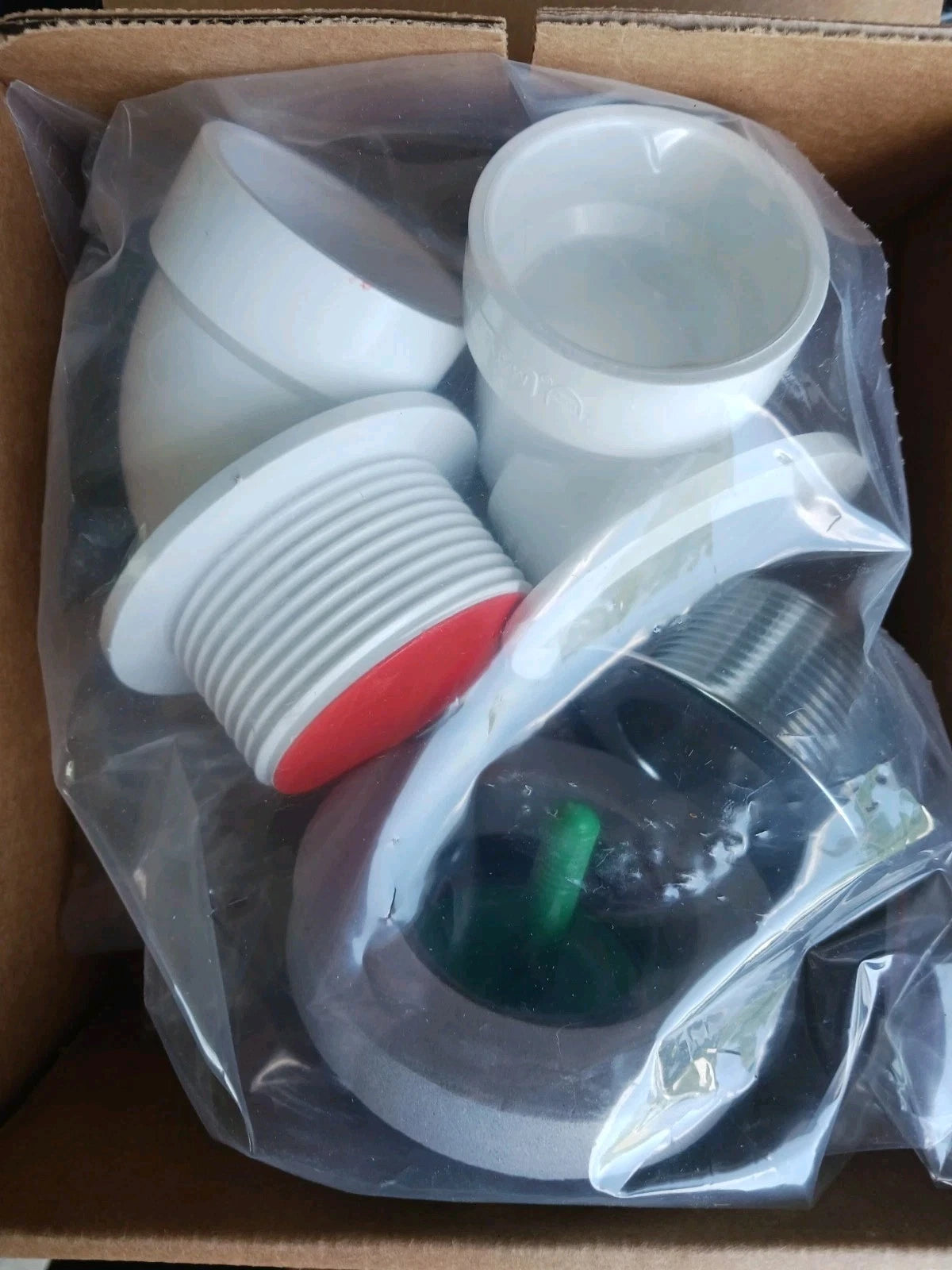

The Plastics 901-ZRI-PVC-CP is a bath waste half kit specifically designed for rough-in installation. It is made from Schedule 40 PVC and extends into the tub through the overflow, securing with a retainer nut. The kit features a self-centering and self-aligning overflow ell, helping to prevent leaks behind the tub without requiring tools for installation. This product includes a drain test plug and an overflow test membrane and can be tested up to five floors (22 psi).

• Constructed from Schedule 40 PVC.
• Features a lift and turn drain type.
• Compliant with ASME A112.18.2 and CSA B125.2 standards.

Product Highlights

The Plastics 901-ZRI-PVC-CP is an effective bath waste solution for ensuring proper drainage and preventing leaks.

Product Information

Standard Information

• Brand: Plastics
• MPN: 901-ZRI-PVC-CP

Technical Specifications

• Type: Rough-In Kit
• Application: Bath
• Drain Type: Lift & Turn Drain
• Material: PVC
• Finish: Chrome Plated
• Outside Diameter: 1.865 inches
• Thread Size: 1-1/2 NPSM (Coarse Thread)
• Standards Met: ASME A112.18.2, CSA B125.2
