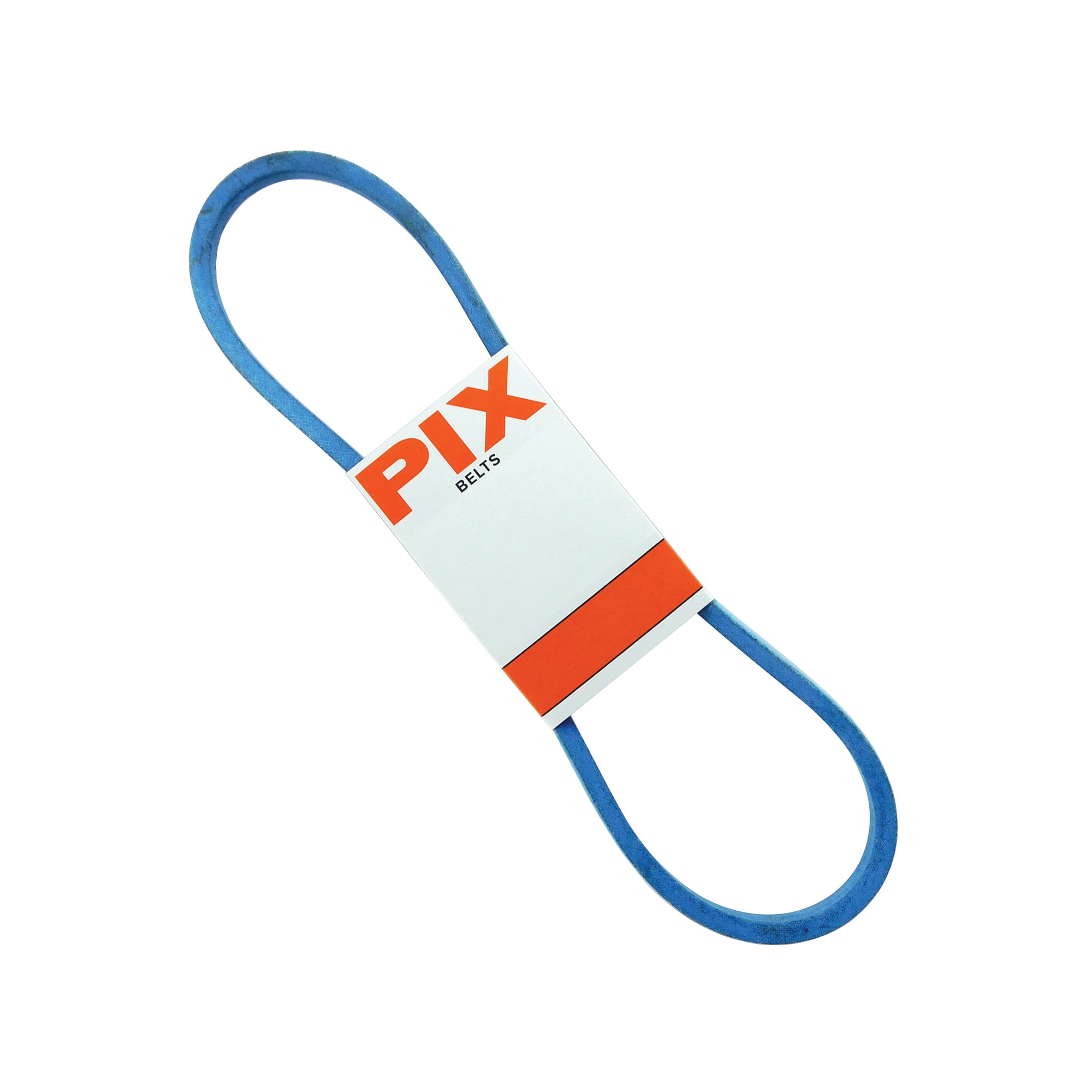

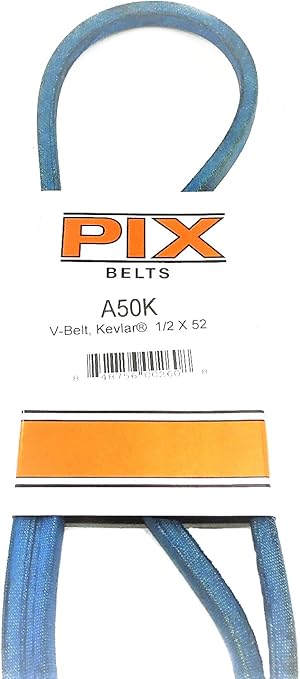

Pix A50K V-Belt Kevlar 1/2 x 52

Product Description

The PIX A50K V-Belt, constructed with Kevlar, measures 1/2 x 52. These V-belts offer high power ratings and utilize selectively chosen compound ingredients for increased safety on critical drives. Primarily used as a replacement on industrial drives, these belts are suitable for v-flat drives and applications with reverse idlers.

• Oil resistant and antistatic
• Maximum belt linear speed up to 30 m/sec
• Temperature range: -18c to +80c

Product Highlights

The PIX A50K V-Belt is oil resistant, antistatic, and ATEX certified, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: PIX
• Manufacturer Part Number: A50K
• Country of Origin: India

Technical Specifications

• Oil Resistant: Yes
• Antistatic: Yes
• Maximum Belt Linear Speed: Up to 30 m/sec
• Temperature Range: -18c to +80c
• ATEX Certified: Yes
• Belt Style: V Belt
• Inside Circumference: 50 in
• Outside Circumference: 52 in
• Manufacturing Range: 20 to 182 in
• Width: 1/2 in
• Thickness: 9/32 in
• Material: Kevlar Aramid Fiber/Rubber
• Original Equipment Manufacturer: PIX
• OEM Part Number: A50K
• Belt Type: Aramid FHP Replacement
• VBG Replacement Id: KVLR26121
• Outside Circumference (Inches): 52
• Outside Circumference (mm): 1320.8
• Top Width (Inches): 0.5
• Top Width (mm): 12.7
• Belt Depth (Inches): 0.31
• Belt Depth (mm): 7.94
• Belt Section: 4LK/AK
• V-Belt Section: AK
• Number of Ribs: 1
• Top Width: 1/2"
• For Use With: General Industrial
• Construction: Dry Wrap
• Temp. Range: 0 Deg F to 176 Deg F
