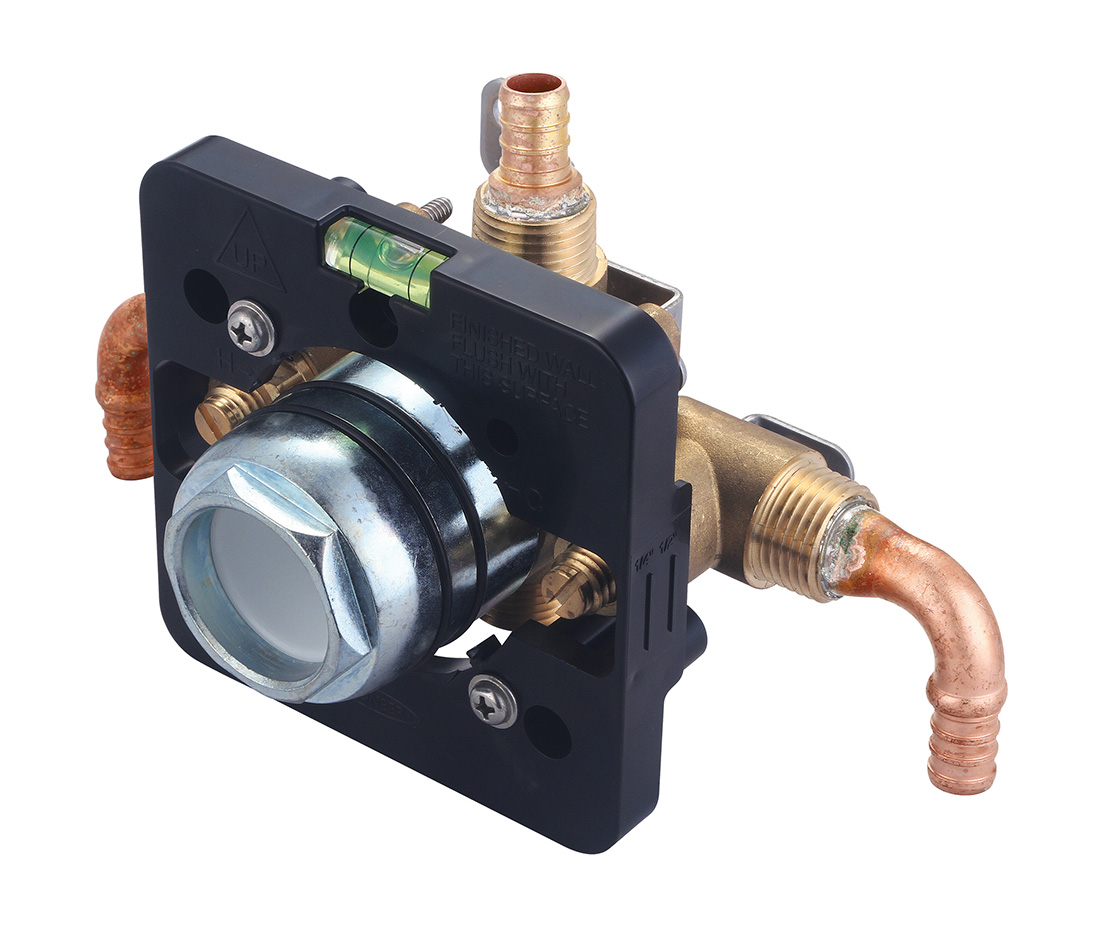

Pioneer Industries V-2302B-B Tub Shower Valve Pex

Product Description

The PIONEER INDUSTRIES V-2302B-B is a single-handle tub and shower valve designed for residential plumbing rough-in installations. It accepts a 1/2 inch PEX inlet connection and provides both a shower outlet and a combo CXC IPS tub outlet, giving installers flexibility in trim and tub spout configuration. The valve body is brass construction, and integral inlet stops with backflow preventors are included, eliminating the need for separate stop valves at the rough-in stage. Licensed plumbers and experienced DIYers handling tub and shower valve replacements or new construction rough-ins will find this a straightforward, code-compatible solution.

This valve is suited for residential tub and shower applications where a single-handle pressure-balancing or mixing valve is required. The combination CXC IPS tub outlet supports a range of tub spout connection types, and the PEX inlet simplifies integration with modern PEX distribution systems. It is appropriate for new construction and remodel projects where the rough-in valve is set before wall finishing and trim installation.

Key Features

• Single-handle design controls both hot and cold water from one valve body
• 1/2 inch PEX inlet connection for compatibility with PEX plumbing systems
• Combo CXC IPS tub outlet supports multiple tub spout connection configurations
• Brass valve body for durability in wet, pressurized environments
• Integral brass inlet stops included for convenient shut-off at the valve
• Built-in backflow preventors on inlet stops for added code compliance

Compatibility

Designed as an OEM-style rough-in valve for residential tub and shower installations using 1/2 inch PEX supply lines with combo CXC IPS tub outlet trim.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the main water supply and depressurize the system before beginning rough-in work. Ensure the valve is secured at the correct rough-in depth per the trim kit manufacturer specifications before closing the wall. Do not overtighten PEX fittings or compression connections, as this can damage sealing surfaces.

Technical Specifications

• Inlet Connection: 1/2 inch PEX
• Tub Outlet: Combo CXC IPS
• Valve Handle Configuration: Single Handle
• Body Material: Brass
• Inlet Stops: Brass with backflow preventors

Standard Information

• Brand: PIONEER INDUSTRIES
• Manufacturer Part Number: V-2302B-B
