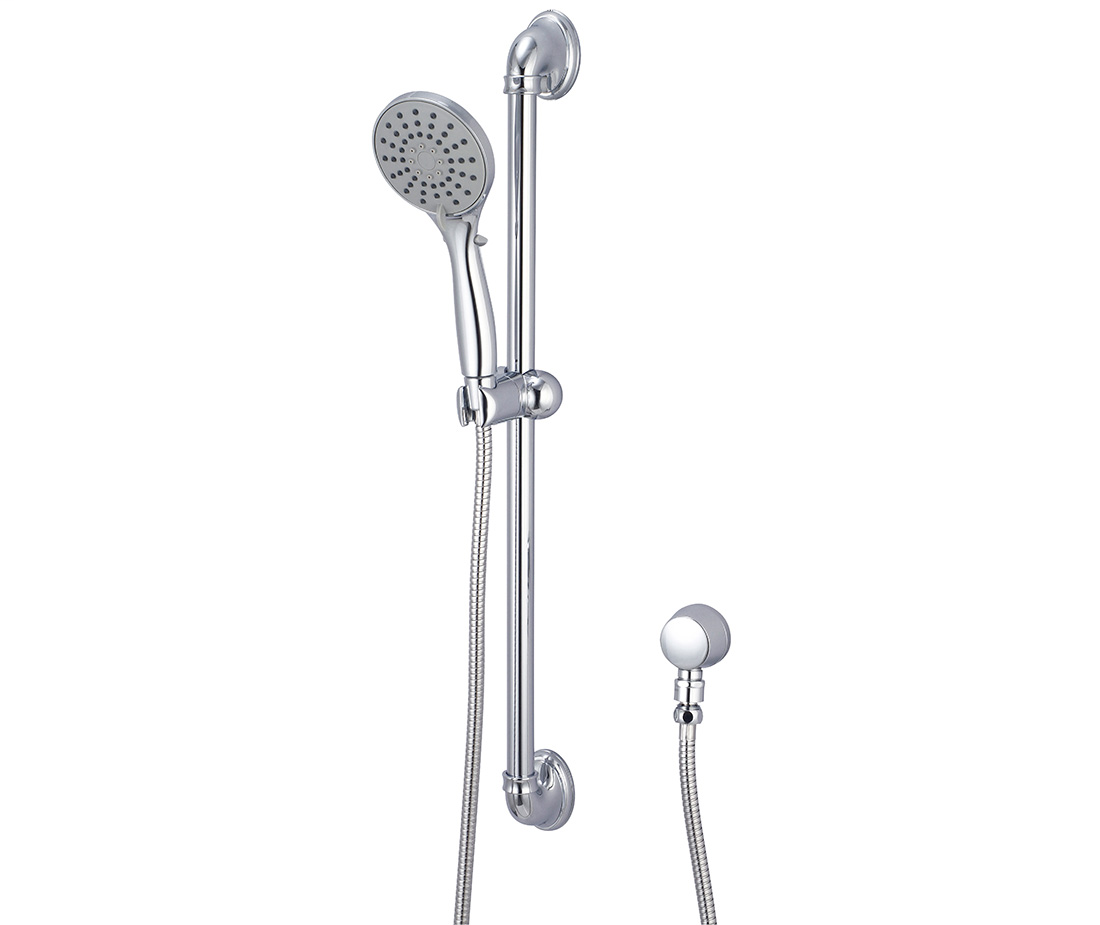

Pioneer Industries P-4430-E1.5 Handheld Shower Set 1.5 Gpm

Product Description

The PIONEER INDUSTRIES P-4430-E1.5 is a three-function handheld shower set designed for residential bathroom installation. The set includes a handheld showerhead, a slide bar for adjustable mounting height, and a brass drop ell with a vacuum breaker. Flow rate is rated at 1.5 gallons per minute, meeting low-flow code requirements in most jurisdictions. The showerhead features a non-positive shut-off, meaning flow is controlled at the valve rather than the head itself. The polished chrome finish and brass drop ell construction make this a durable, corrosion-resistant assembly suited for plumbing professionals handling retrofit or new-construction bath fixtures.

This handheld shower set is intended for residential bathroom applications where a slide bar and flexible hose configuration is required. The included brass drop ell with vacuum breaker provides a code-compliant supply connection, protecting potable water lines from backflow. The 1.5 GPM flow rate supports water-conservation requirements common in California, Colorado, and other regulated states. Plumbers and finish trim contractors typically install this unit during the fixture trim-out phase of construction or during a retrofit of an existing shower valve.

Key Features

• Three-function handheld showerhead for adjustable spray patterns
• 1.5 GPM flow rate supports low-flow and water-conservation code compliance
• Slide bar allows height adjustment for users of varying statures
• Brass drop ell with vacuum breaker provides a backflow-protected wall connection
• Non-positive shut-off design routes flow control to the shower valve
• Polished chrome finish for corrosion resistance and clean aesthetics

Compatibility

Designed as an OEM-style replacement or new-installation handheld shower set for standard residential shower valve outlets with a half-inch IPS or equivalent wall supply connection.

Installation Notes

Installation is performed by a licensed plumber during the trim-out phase of bathroom construction or as a retrofit on an existing shower system. Shut off the water supply to the shower valve before making any connections. The brass drop ell with vacuum breaker must be installed per local plumbing code requirements, which typically reference IPC or UPC backflow-prevention provisions. Do not over-tighten the slide bar mounting hardware against tile or surround surfaces to avoid cracking.

Technical Specifications

• Flow Rate: 1.5 gallons per minute (GPM)
• Finish: Polished Chrome
• Drop Ell Material: Brass
• Vacuum Breaker: Included
• Showerhead Functions: Three
• Shut-Off Type: Non-positive shut-off

Standard Information

• Brand: PIONEER INDUSTRIES
• Manufacturer Part Number: P-4430-E1.5
