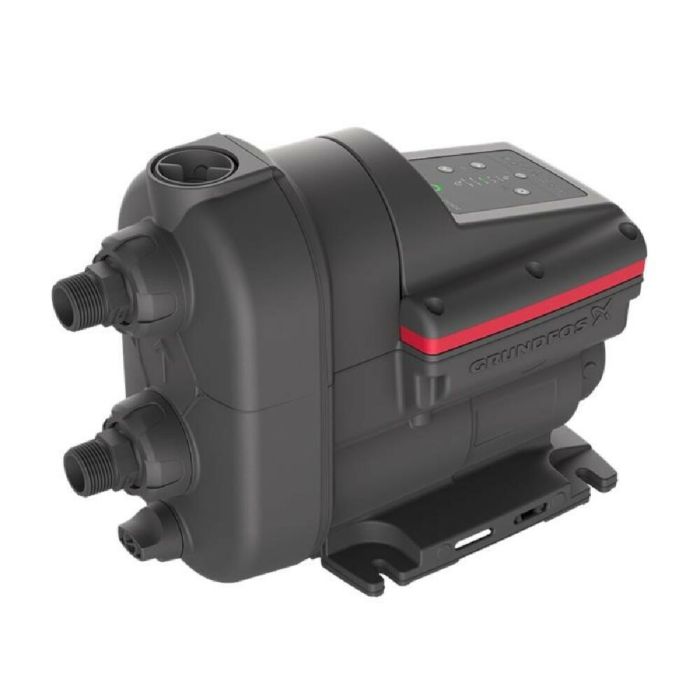

PINNACLE SALES 93013251(SCALA23-45A) SCALA2 Water Booster Pump 115V 145 PSI

Product Description

The PINNACLE SALES 93013251(SCALA23-45A) is an effective water booster pump designed for reliable water delivery in residential and commercial settings. With a power input of eight hundred thirty watts and a maximum pressure of one hundred forty-five PSI, this pump efficiently boosts water supply. It includes an intelligent pump control system and built-in sensors for monitoring operations.

• Power Input: 830 Watts
• Rated Flow: 13.2 US GPM
• Maximum Operating Pressure: 109 PSI

Product Highlights

This water booster pump is ideal for enhancing pressure in homes and businesses, especially in lightweight installations.

Product Information

Standard Information

• Manufacturer: PINNACLE SALES SUPPLY
• Part Number: 574250

Technical Specifications

• Model: 93013251 (SCALA2 3-45 A)
• Enclosure Class: 54 (IEC 34-5)
• Insulation Class: B (IEC 85)
• Length of Cable: 6.56 ft
• Main Frequency: 60 Hz
• Pipe Connection: 1 NPT
• Rated Current: 7.2 A
• Rated Voltage: 1 x 110-120 V
• Rated Head: 72.2 ft
• Rated Flow: 13.2 US GPM
• Maximum Operating Pressure: 109 PSI
• Operating Temperature Range: 32 to 113 F
• Weight: 28.7 lbs
• Shaft Seal: BVBP
• Type of Cable Plug: NEMA
