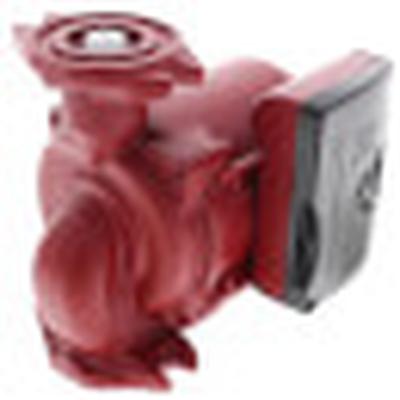

PINNACLE SALES 52722512(UPS26-99FC) UPS Series Cast Iron Circulator Pump, High Head, With Three-Speed SuperBrute Technology, Check Valve, and Two-Bolt Flange Connection, 115V

Product Description

The PINNACLE SALES 52722512(UPS26-99FC) is a robust UPS Series cast iron circulator pump designed for heating applications. It operates efficiently with a three-speed SuperBrute technology to manage circulation effectively. This model is compatible with various piping sizes and features a check valve and two-bolt flange connection for easy installation.

• Flanged design for easy integration in plumbing systems
• Flow range supports up to thirty-three gallons per minute
• Temperature tolerance from thirty-six to two hundred thirty degrees Fahrenheit

Product Highlights

This circulator pump is optimal for residential and light commercial heating systems.

Product Information

Standard Information

• Brand: PINNACLE SALES SUPPLY
• Manufacturer: PINNACLE SALES SUPPLY

Technical Specifications

• Model: 52722512 (UPS 26-99 FC)
• Application: Heating
• Connection Size: Three-fourths, one, one and one-fourth, one and one-half inches
• Type: Flanged
• Flow Range: 0-33 GPM
• Head Range: 0-29 feet
• Horse Power: 1/6
• Material: Cast Iron
• Max PSI: 145 psi
• RPM: 3380
• Temperature Range: 36°F - 230°F
• Voltage: 115/1/60
