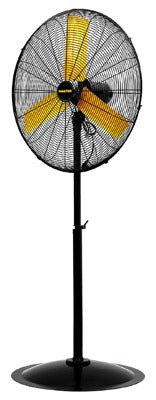

Pinnacle Climate Technologies MAC-30P 30 in Pedestal Fan 8500 Cfm

Product Description

The PINNACLE CLIMATE TECHNOLOGIES MAC-30P is a 30-inch high-velocity pedestal fan built for demanding industrial and agricultural environments. Powered by a direct drive 1/3 horsepower motor running on 120V/60Hz at 2.5 amps, it delivers three selectable airflow rates of 8500, 7000, and 6000 CFM to match ventilation needs at any given moment. The fan features a durable steel construction with three blades, a telescoping adjustable height post, and a swivel head for precise directional airflow control. A 9-foot power cord provides flexible placement without requiring an extension in most settings. Licensed HVAC and mechanical contractors as well as facility maintenance professionals are the typical installers.

The MAC-30P is designed for high-volume air circulation in spaces where standard residential fans fall short. Typical applications include factory floors, warehouses, barns, and livestock facilities where consistent airflow helps manage heat, humidity, and air quality. The adjustable height post and swivel head allow the unit to be repositioned and aimed without tools, making it practical for facilities that shift layout seasonally or by operation type. Its direct drive motor eliminates belt wear and reduces routine maintenance requirements compared to belt-driven alternatives.

Key Features

• 30-inch blade diameter for wide airflow coverage
• Three-speed operation: 8500, 7000, and 6000 CFM
• Direct drive motor reduces maintenance and mechanical failure points
• Telescoping adjustable height post for flexible positioning
• Swivel head enables targeted directional airflow control
• Durable steel construction rated for industrial and agricultural use
• 9-foot power cord for extended reach from outlet to placement point

Compatibility

Designed as a standalone high-velocity pedestal fan suitable for industrial, commercial, and agricultural ventilation applications requiring a 120-volt single-phase power supply.

Installation Notes

Installation and setup should be performed by a qualified technician or facilities professional familiar with industrial ventilation equipment. Ensure the power source is de-energized before connecting or servicing the unit. Verify that the floor surface is level and stable before placing the fan to prevent tipping under vibration. Local electrical codes and OSHA workplace safety guidelines should be consulted when deploying powered ventilation equipment in commercial or agricultural settings.
