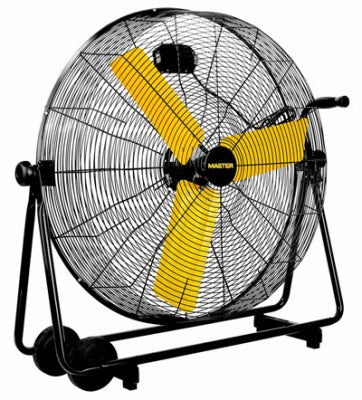

Pinnacle Climate Technologies MAC-30BCT 30 in Barrel Fan

Product Description

The PINNACLE CLIMATE TECHNOLOGIES MAC-30BCT is a 30-inch, high-velocity, direct-drive barrel fan designed for heavy-duty air circulation in demanding environments. Built with a durable steel construction and three blades, it delivers airflow rates of 8500, 7000, or 6000 CFM across three selectable speeds. The unit runs on 120V/60Hz and draws 2.2 amps at a 1/3 horsepower motor rating. A swivel cart allows directional airflow adjustment without repositioning the entire unit, and a built-in handle combined with rock-solid wheels makes relocation straightforward. This fan is intended for installation or placement by facilities maintenance staff, contractors, or HVAC service professionals managing ventilation in large open spaces.

The MAC-30BCT is suited for factory floors, warehouses, barns, and agricultural facilities where consistent, high-volume air movement is required. The portable design means it can be repositioned to address hot spots, improve cross-ventilation, or support spot cooling during maintenance operations. The three-speed selector gives operators control over airflow volume based on ambient conditions and space requirements. Its robust steel frame holds up to the rigors of industrial and agricultural use.

Key Features

• Three selectable speeds delivering 8500, 7000, or 6000 CFM airflow
• Direct-drive motor at 1/3 horsepower, 120V/60Hz, 2.2 amps
• 30-inch three-blade fan head for high-volume air movement
• Durable steel construction for industrial and agricultural environments
• Swivel cart for precise directional airflow control
• Rock-solid wheels and built-in handle for easy portability

Compatibility

Designed as a portable, high-velocity barrel fan suitable for factory, warehouse, barn, and large open-area ventilation applications operating on standard 120V/60Hz single-phase power.

Installation Notes

This unit is a portable floor fan and does not require hardwired installation; plug into a properly rated 120V grounded outlet before operating. Verify that the outlet and circuit can handle continuous motor load before use. Position the swivel cart on a stable, level surface and engage any locking mechanisms before directing airflow. Facilities or maintenance personnel should inspect the power cord and plug for damage before each use and keep the blade assembly clear of obstructions during operation.
